Home /Products/Figure 8 Fiber Optic Cable/Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable

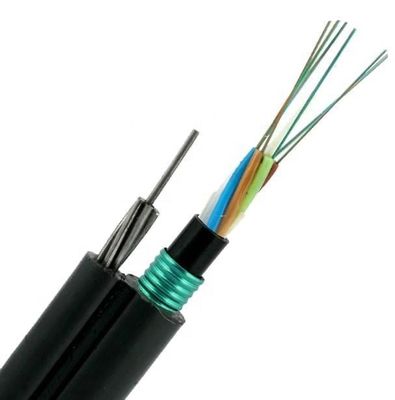

Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable

1km
MOQ
Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Numer: GYTC8S
OEM: Available
Sheath Material: PE
Manufacturer: Yes
Strength Member: Phosphated Steel Wire 3.0mm(7*1.0mm)
Highlight:

96 core Figure 8 Fiber Optic Cable

,

GYTC8S Figure 8 Fiber Optic Cable

,

GYTC8S figure 8 electrical cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS
Model Number: GYTC8S
Payment & Shipping Terms
Packaging Details: 1km
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

Fiber Optic Cable GYTC8S Fiber Optic 96 Core Outdoor Fiber Cable

Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable 0







Fiber Optic G652D

Parameter Specification
MFD (1310nm) 9.2±0.4 um
MFD (1550nm) 10.4±0.8 um
Cladding diameter 125±1.0um
Fiber diameter 235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error ≤ 0.5um
Coating/cladding concentricity error ≤ 12.0um
Cladding non circularity ≤ 1.0%
Cut off wavelength λcc ≤1260nm



Attenuation coefficient



1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling



Bending-loss performance of optical fiber @1310nm&1550nm



≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre



≤0.2ps/√km
Polarization mode dispersion link value ≤0.1ps/√km
Zero-dispersion wavelength 1300~1324nm
Zero-dispersion slope ≤0.092ps/nm2·km



Cable performance:



Item Parameters
Fiber Count 12
Colored coated fiber Dimension 250µm±15µm
Color Blue,Orange,Green/Brown
Loose tube Dimension 2.0mm±0.1mm
Material PBT
Color Blue,Orange,Green
Filler Material PE
Color White
Central Strength Member Dimension 1.5mm
Material FRP
Armoured Material Corrugated steel tape
Inner Jacket PE
Messenger Stranded steel wire Dimension 3.0mm(7*1.0mm)
Outer jacket Material PE
Color Black
Certification:

Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable 1

FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.





Tag:

GYXTC8S figure 8 fiber cable

2.0mm Wire Outdoor Fiber Optic Cable

GYXTC8S Outdoor Fiber Optic Cable
