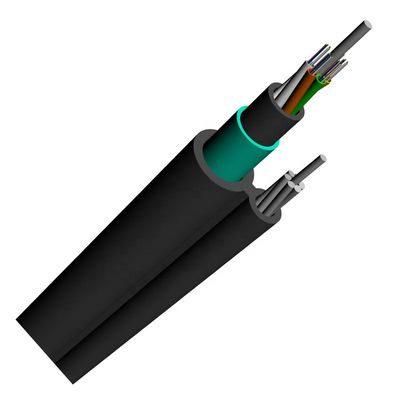

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, that depends on the quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram, MoneyGram
Supply Ability : 100000pcs/day
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ROSH/ISO9001 Model Number: GYTC8Y53

Detail Information

Fiber Brand: YOFC Warranty: 25 Years
Length: 2km Color: Black
Fiber Count: 2-144 Core Amoured: Single Armoured
Jacket: Double Jacket
High Light:

Single Armoured Fiber Optic Cable

,

Double Jacket Armoured Fiber Optic Cable

,

DJSA Armoured Fiber Optic Cable

Product Description

Outdoor Double Jacket Single Amoured 24 48 96 Core Fibra Optic Cable DJSA

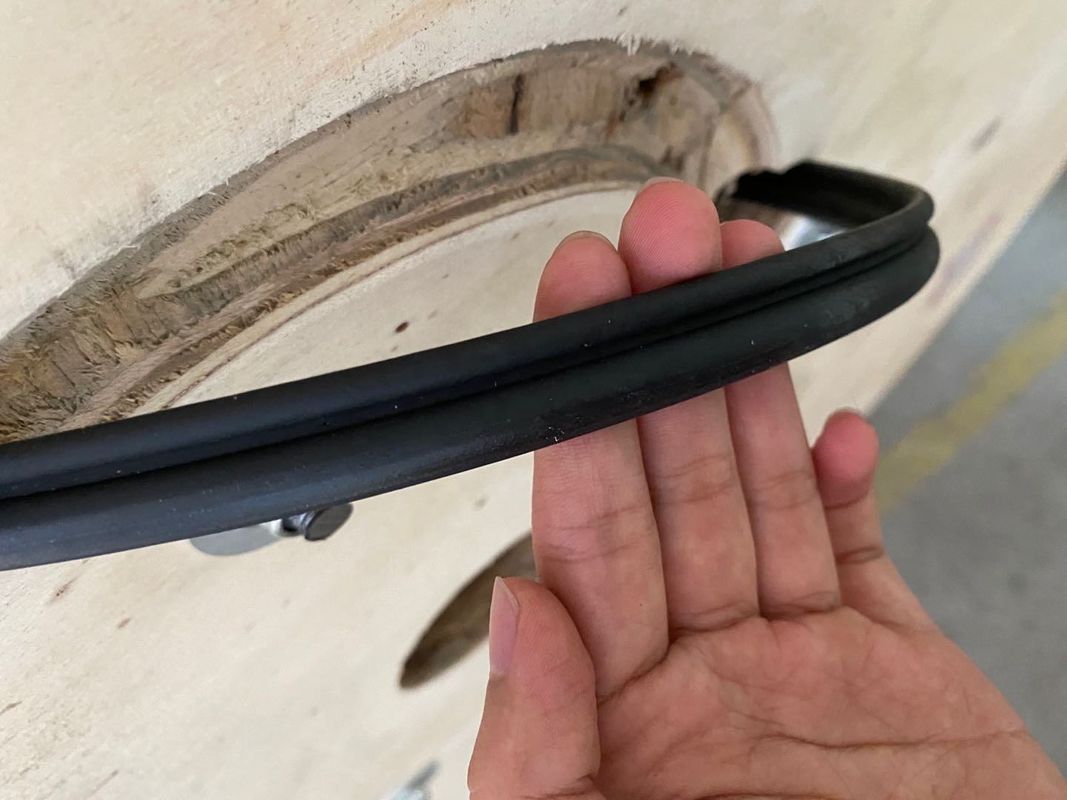

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 0

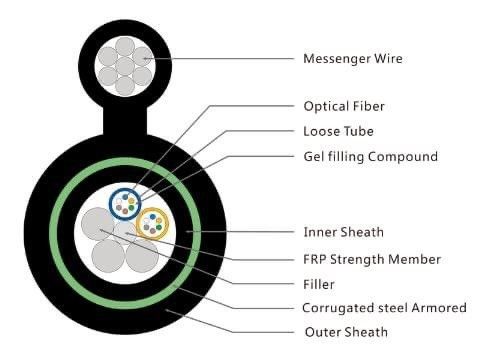

In the figure 8 cable, single-mode fibers are positioned in the loose tubes,

while the loose tubes strand together around metallic central strength member into a compact and circular cable core,

and the water-blocking materials are distributed into interstices of it.

The cable is accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 supported.

GYTC8Y53 is an optical cable with a jacket on the basis of GYTC8Y.

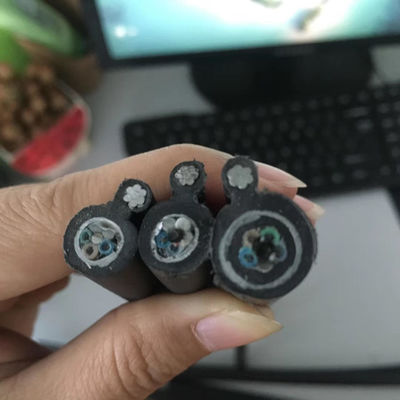

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 1



Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 2

Mechanical and Environmental Characteristics

Item Unit Specifications
Tension(Long Term) N 2500
Tension(Short Term) N 5000
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature -40~+60
Operating Temperature -40~+70
Storage Temperature -40~+70
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.



Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 3

Package & Delivery

Wooden drum:1KM 2KM 3KM 4KM for one roll

Shipping: By sea/by air or express delivery, it depends on the order quantity

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 4

Factory Show

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 5

We are a factory.  Welcom to visit our factory.

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 6

Certificate

Outdoor Double Jacket Single Armoured Fiber Optic Cable DJSA 7

FAQ:

1. Are you a manufacturer?
Yes. We are a company integrating industry and trade. Our factory is located in Guangzhou, Guangdong Province, China.

2.How can you guarantee quality?
We conduct three inspections from raw materials to finished products, and then to the factory. 25-year guarantee period.

3.What product do you sell?
There are fiber optic cable, FTTH drop cable, communication cables, outdoor/indoor fiber cable.

4 .What service can you provide?
One-to-one service, fast response.
