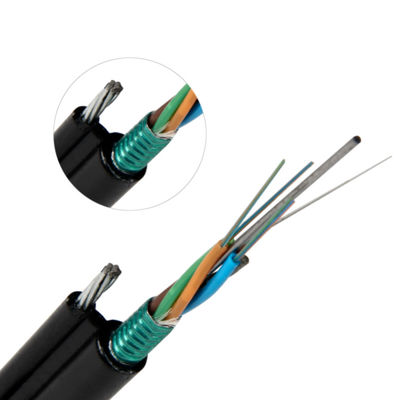

12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001 Model Number: GYTC8S

Detail Information

Fiber Count: 2-144 Core Lift Time: 25 Years
Fiber Type: G652D Application: Overhead
Jacket: PE Color: Black
Amoured: Yes Strength Member: FRP
Factory: Yes
High Light:

GYTC8S Figure 8 Fiber Optic Cable

,

Overhead Figure 8 Fiber Optic Cable

,

96 Core Figure 8 Fiber Cable

Product Description

Loose Tube Stranded Self Supporting 12 24 48 72 96 Core Fiber Optical Cable GYTC8S
12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 0
Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
  1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
  1550nm dB/km £0.22
Proof stress level kpsi ≥100

12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 1



12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 2

12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 3

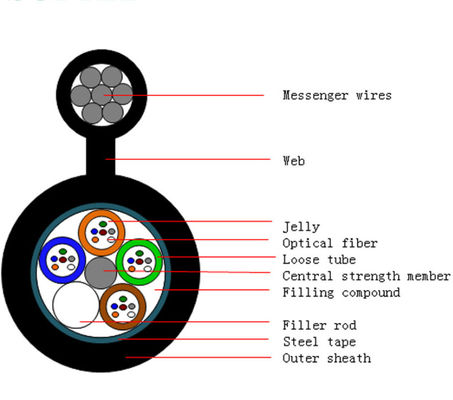

• Excellent mechanical and temperature performance
• Critical protection to fibers
• The following measures are taken to ensure the
• water blocking performance of the cable:
• Single steel wire used as the central strength member
• Special water-blocking filling compound in the loose tube
• 100% cable core filling

Factory
12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 4
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 5
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

12 72 96 Core Figure 8 Fiber Optic Cable GYTC8S Loose Tube Stranded 6
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.

7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
