Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 5 km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 300km per days |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
|
Detail Information |
|||
| Model Number: | GYTC8S/GYFTC8S/GYXTC8A | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 2-144 Cores | Length: | 2 Km Or Customized |
| Color: | Black | Messenger Wire: | 1.0*7 Steel Stranded Wire |
| Structure: | Figure 8 Cable | Type: | APL Tape |
| Operating Temperature: | -40 ~ +60 C | Application: | Outdoor Aerial Application |
| Product Name: | Figure 8 Self Support Fiber Optical Cable | ||
| High Light: | Self Supporting Figure 8 Fiber Optic Cable,FRP Strength Figure 8 Fiber Optic Cable |
||
Product Description
self-supporting FRP strength armoured GYFTC8S Figure 8 Fiber Optic Cable

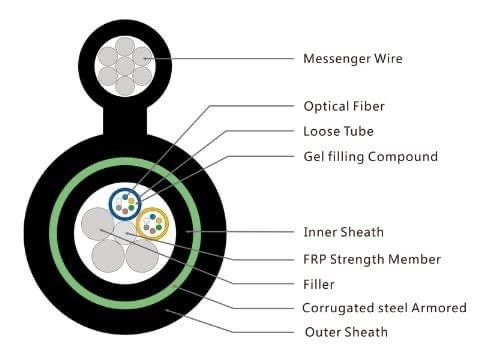

description of Figure 8 fiber cable
Figure 8 fiber cable , includs models GYFTC8S /GYTC8S/GYXTC8S/GYXTC8Y , is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. The metal strength member is made up of stranded wires, the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Features
1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2. Good mechanical and temperature performance
3. High strength loose tube that is hydrolysis resistant
4. Special tube filling compound ensure a critical protection of fiber
5. The following measures are taken to ensure the cable watertight:
- Steel wire /FRP used as the central strength member
- Loose tube filling compound
-100% cable core filling
- PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Model | G.652D | ||
| Design(Strength Member+Tube&Filler) | 1+5 | ||
| CentralStrengthMember | Material | Steel Wire | |
| Diameter(+0.05)mm | 1.5 | ||
| LooseTube | Material | PBT | |
| Diameter(+0.06)mm | 2.0 | ||
| Thickness(+0.03)mm | 0.32 | ||
| TheMax.CoreNO./Tube | 12 | ||
| Filler Rope | Material | PE | |
| Color | White | ||
| Diameter(+0.06)mm | 2.1 | ||
| Strand Strength Member | Material | stranded steel wire | |
| Type | φ1.0mm x7 | ||
| Armor layer | Material | Steel Tape | |
| OuterSheath① | Material | PE | |
| Thickness(+0.03)mm | 1. | ||
| OuterSheath① | Material | MDPE | |
| Thickness(40.03)mm | 1.8 | ||
| CableDiameter(土0.2)mm | 9.0*16.0(nominal) | ||
| CableWeight(+10)kg/km | 160(nominal) | ||
| Tensile /N (short term) | 5000 | ||
| Tensile /N (long term) | 1500 | ||
| Crush/N ( short term) | 1000 | ||
| Crush /N (short term) | 300 | ||
| Attenuation | 1310nm | 0.35dB/KM | |
| 1550nm | 0.22dB/KM | ||
| Min.bendingradius | Without Tension | 10.0*Cableφ | |
| Under Maximum Tension | 20.0xCableφ | ||

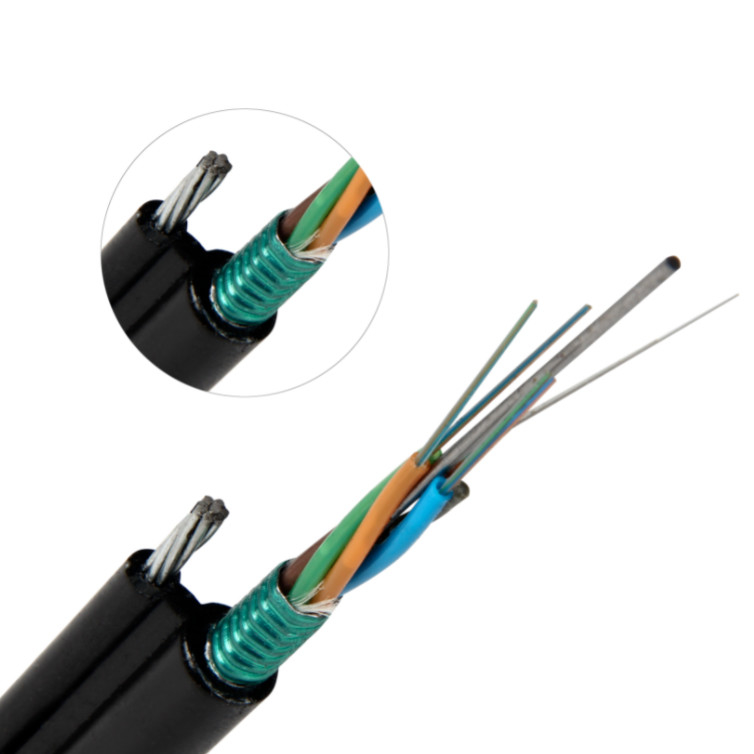

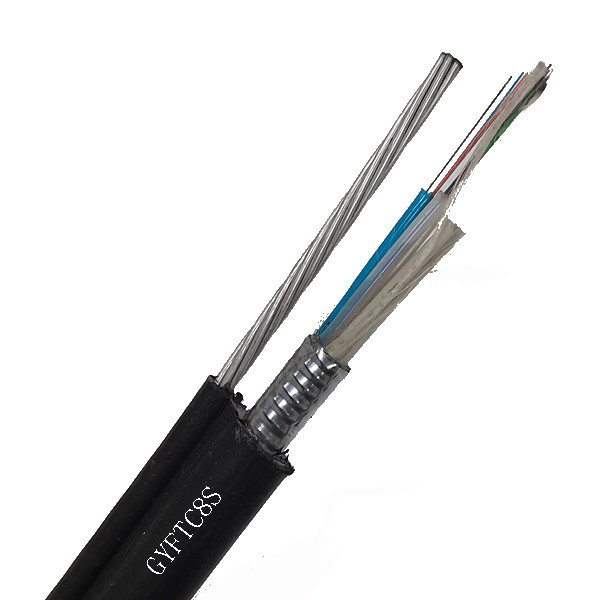

Picture Show
Packing
• Standard Cable Wooden Drum
• Standard reel length: 2/3km/reel, other length is also available
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
