Name: Outdoor Fiber Optic Cable 12 24 48 96 Core Figure 8 GYTC8S
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTC8S/GYXTC8S
Price: 480.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou,China

Brand Name: Jiqian

Model Numer: GYTC8S

OEM: Available

Sheath Material: HDPE

Manufacturer: Yes

Strength Member: Phosphated Steel Wire 3.0mm(7*1.0mm)

Fiber Count: 4-144 Cores

Highlight:

96 Core Outdoor Fiber Optic Cable

24 Core Outdoor Fiber Optic Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO 9001/CE/FCC/ROHS

Model Number: GYTC8S/GYXTC8S

Payment & Shipping Terms

Packaging Details: 2/3km

Delivery Time: 3-5 days

Payment Terms: L/C, T/T, Western Union,Alipay

Supply Ability: 4500 per month

Gallery

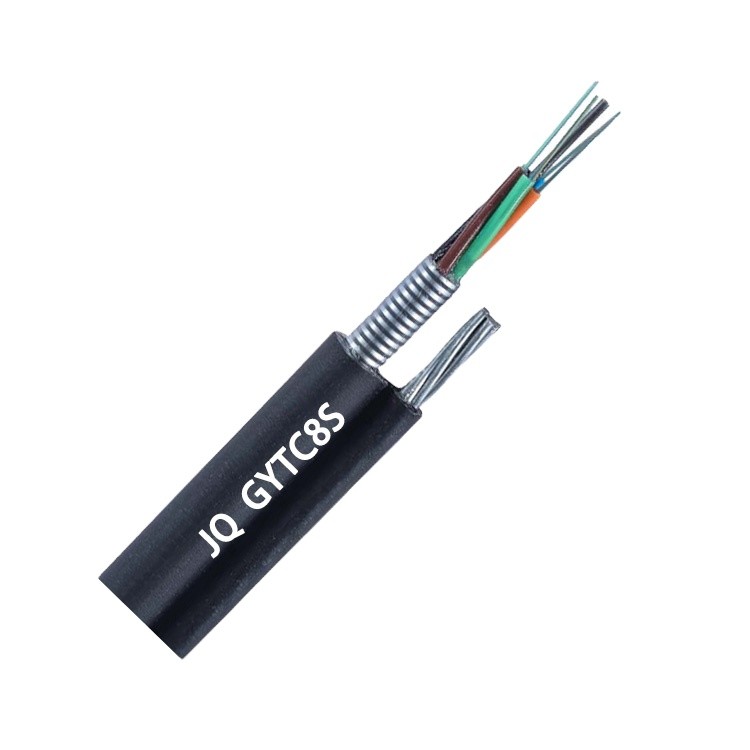

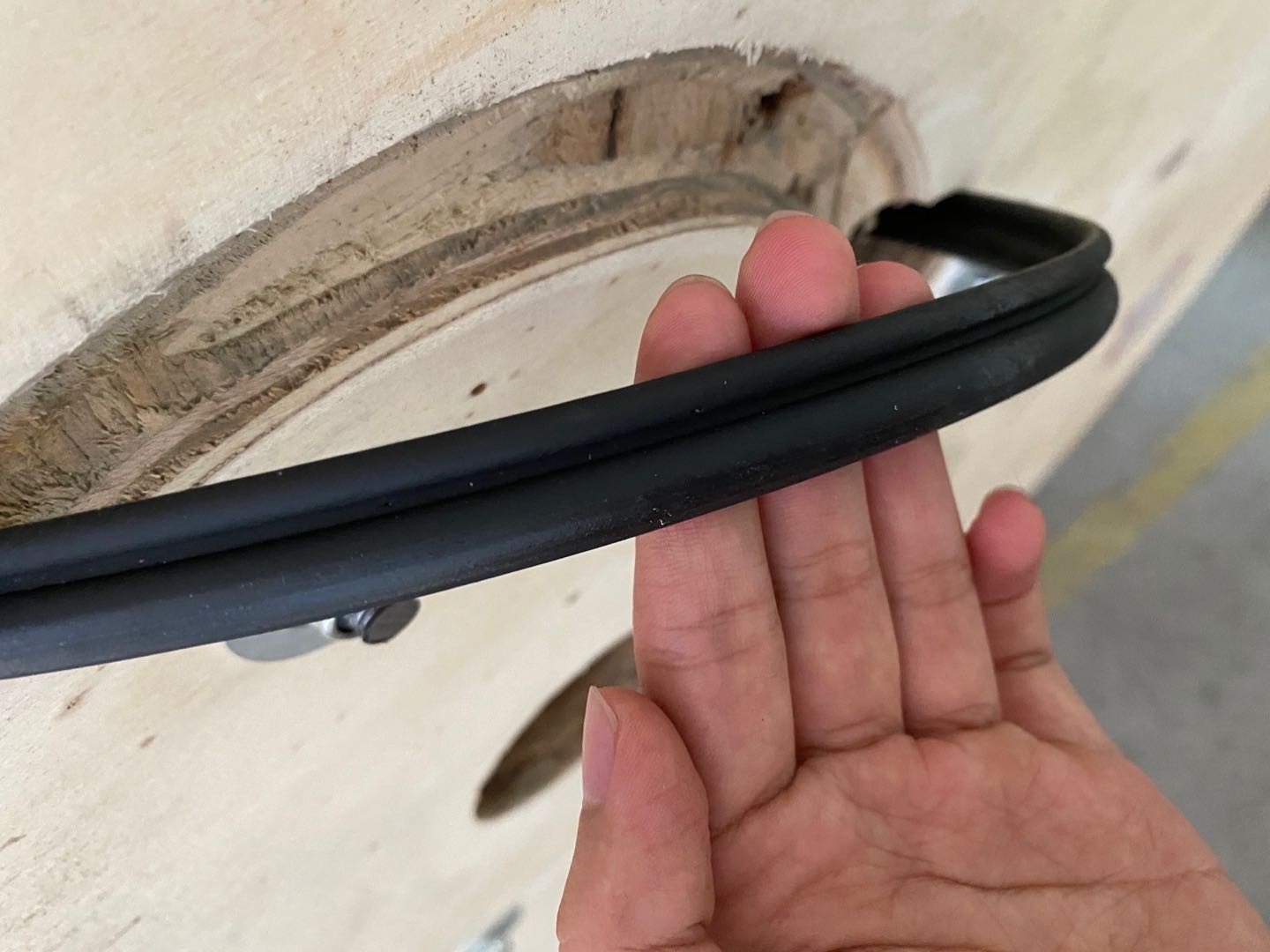

Outdoor Fiber Optic Cable 12 24 48 96 Core Figure 8 GYTC8S

Product Description

Manufacturing outdoor fiber optic cable 12 24 48 96 core figure 8 GYTC8S

Fiber Optic G652D

Parameter Specification

MFD (1310nm) 9.2±0.4 um

MFD (1550nm) 10.4±0.8 um

Cladding diameter 125±1.0um

Fiber diameter 235~255um, with UV coating, and colored to : 250±15um

Core/cladding concentricity error ≤ 0.5um

Coating/cladding concentricity error ≤ 12.0um

Cladding non circularity ≤ 1.0%

Cut off wavelength λcc ≤1260nm

Attenuation coefficient

1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling

Bending-loss performance of optical fiber @1310nm&1550nm

≤0.05dB (100 turns around a mandrel of 50mm diameter)

Polarization mode dispersion maximum individual fibre

≤0.2ps/√km

Polarization mode dispersion link value ≤0.1ps/√km

Zero-dispersion wavelength 1300~1324nm

Zero-dispersion slope ≤0.092ps/nm²·km

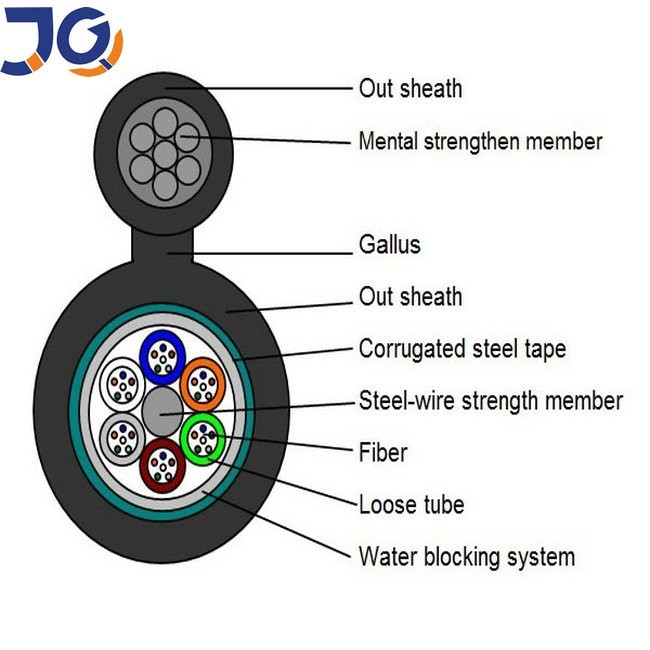

Cable performance:

Item Parameters

Fiber Count 12

Colored coated fiber Dimension 250µm±15µm

Color Blue,Orange,Green/Brown

Loose tube Dimension 2.0mm±0.1mm

Material PBT

Color Blue,Orange,Green

Filler Material PE

Color White

Central Strength Member Dimension 1.5mm

Material FRP

Armoured Material Corrugated steel tape

Inner Jacket PE

Messenger Stranded steel wire Dimension 3.0mm(7*1.0mm)

Outer jacket Material PE

Color Black

Certification:

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Exhibition:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.

Tag:

Tel :

+8618998347595

Fax :

86-020-82890902

Outdoor Fiber Optic Cable 12 24 48 96 Core Figure 8 GYTC8S

96 Core Outdoor Fiber Optic Cable

24 Core Outdoor Fiber Optic Cable

GYXTC8S figure 8 fiber cable

2.0mm Wire Outdoor Fiber Optic Cable

GYXTC8S Outdoor Fiber Optic Cable

GYTC8S Figure 8 Fiber Optic Cable 24 Core Self Supporting Aerial Communication Cable

Wholesale Aerial Figure Fig8 Fiber Optic Cable Outdoor Armored 12 24 Core G652D GYTC8S

Outdoor Aerial GYTC8S Fiber Optic Cable Figure-8 Design 12/24/96 Core Steel Messenger

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger

GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D

24 48 Core GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable Outdoor Armored Wire

48 Core GYTC8S Self-supporting Aerial Figure 8 Fiber Optic Cable

Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm²·km

Item		Parameters
Fiber Count		12
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green/Brown
Loose tube	Dimension	2.0mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green
Filler	Material	PE
Filler	Color	White
Central Strength Member	Dimension	1.5mm
Central Strength Member	Material	FRP
Armoured	Material	Corrugated steel tape
Inner Jacket	PE
Messenger Stranded steel wire	Dimension	3.0mm(7*1.0mm)
Outer jacket	Material	PE
Outer jacket	Color	Black
