Self Supporting GYTC8S Fiber Optic Cable 24 Core Fig 8 Fiber Optical Cable

Product Description

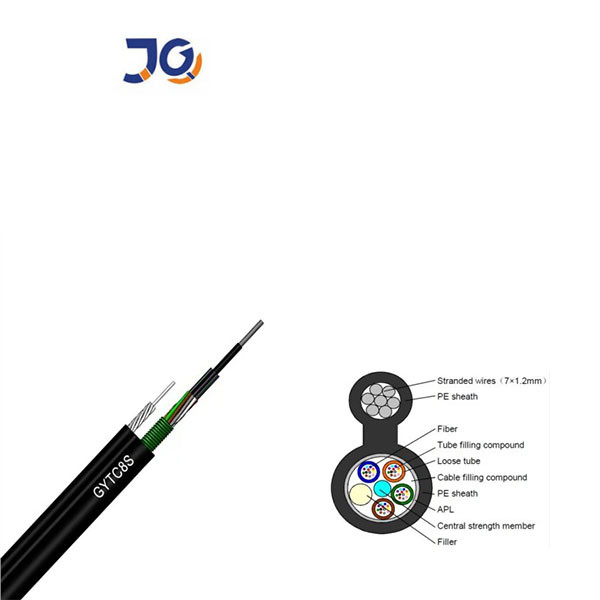

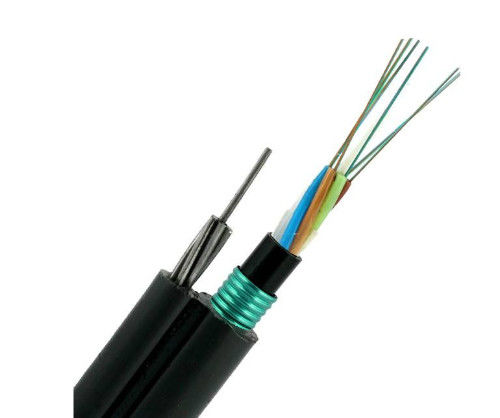

Figure 8 Aerial Fiber Optic Cable

Product characteristic:

·Steel wire strands have extremely high tensile strength, which facilitates self-supporting overhead laying and reduces installation costs. ·Have good mechanical properties and temperature characteristics ·Loose tube material itself has good water resistance and high strength ·The tube is filled with special grease to provide critical protection for the optical fiber. ·Adopt the following measures to ensure the waterproof performance of optical cables ·The loose tube is filled with special waterproof compound ·Cable core full cross-section filling ·Double-sided plastic-coated steel strip (PSP) moisture-proof layer

Fiber Optic G652D



Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm2·km



Structure Parameters:

Cable Model	Cable Diameter(mm)	Messenger steel wire(mm)	Tension(Long Term/Short Term)/N	Crush(Long Term/short term)/N	Min. Bend Radius(Dynamic/Static)
4-24	9.0*14.5	3.0mm(7*1.0mm)	3000/5000	500/1000	20D/10D
36-48	9.6*15.2	3.0mm(7*1.0mm)	3000/5000	500/1000	20D/10D
72	10.8*16.3	3.0mm(7*1.0mm)	3000/5000	500/1000	20D/10D
96	12*17.5	3.0mm(7*1.0mm)	3000/5000	500/1000	20D/10D
144	15.8*21.3	3.0mm(7*1.0mm)	3000/5000	500/1000	20D/10D



Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa



Exhibition:

FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory,which is in  Guangzhou,China

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available

5,Q:What’s delivery time?
A:The usually delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
