Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound

Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Diameter: 9/125μm
Outer Diameter: 7.0mm-16.0mm
Water Blocking System: Filling Compound
Cladding Diameter: 125.0±0.1
Bending Radius: 20D
Jacket: UV PE
Fiber Cores: 4-144cores
Bend Radius: 20x Cable Diameter
Highlight:

Unarmored Fiber Optic Cable

,

Outdoor Figure 8 Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ
Model Number: GYTC8S/GYXTC8S
Payment & Shipping Terms
Product Description

Product Description:

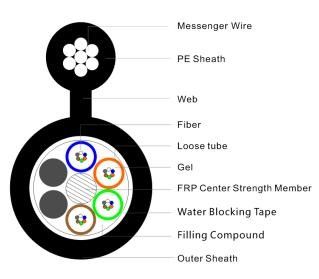

Figure 8 Fiber Optic Cable

Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound 0



Technical Parameters:

Technical Parameters Value
Product Name Fig.8 Fiber Optic Cable
Fiber Optic Cables Type Aerial laying
Armored Material Aluminum Tape or Steel Tape/without armored
Fiber Diameter 9/125μm
Cable Use Outdoor
Water Blocking System Filling Compound
Warranty 25 Years
Self Supporting Stranded Steel Wire 7*1.0mm
Cable Sheath PE
Fiber Cores 4-144cores
Bending Radius 20D
Jacket Material HDPE


Customization:

JQ Figure 8 Fiber Optic Cable Customization Service

Thank you for choosing JQ as your partner for your fiber optic cable needs. Our Figure 8 Fiber Optic Cable is designed for high performance and durability, and we offer a wide range of customization options to meet your specific requirements.

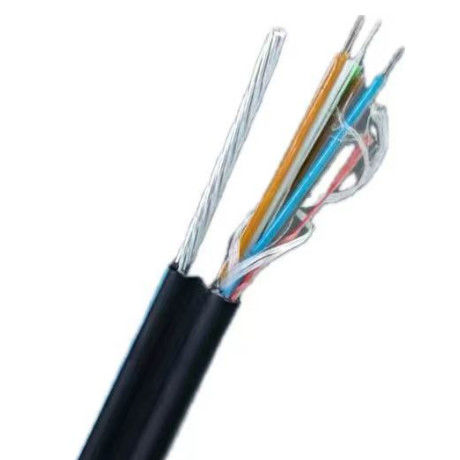

Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound 1



 We look forward to working with you! Free Samples for you!

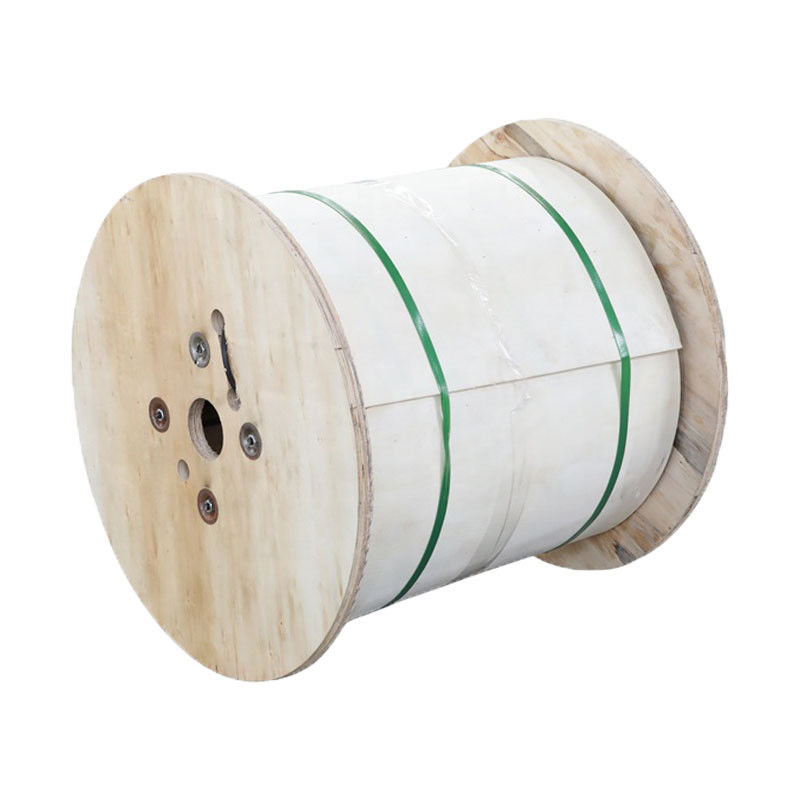

Packing and Shipping:

Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound 2Outdoor Figure 8 GYFTC8Y Unarmored Fiber Optic Cable with Filling Compound 3
