Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTC8Y |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Jacket: | PE,MDPE,LSZH,PVC | Strength Member: | FRP |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | ||
| High Light: | Stranded Loose Tube Figure 8 Cable,FRP Strength Member Figure 8 Cable |
||
Product Description
Product Description

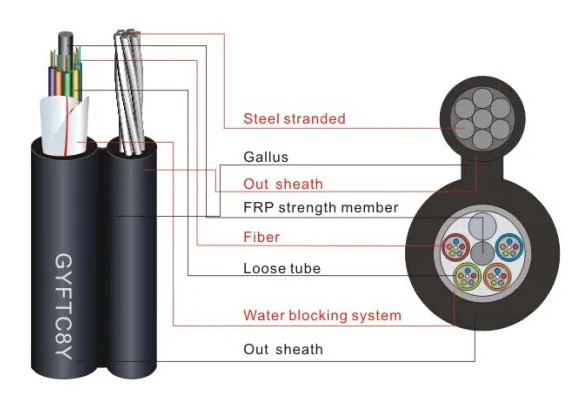

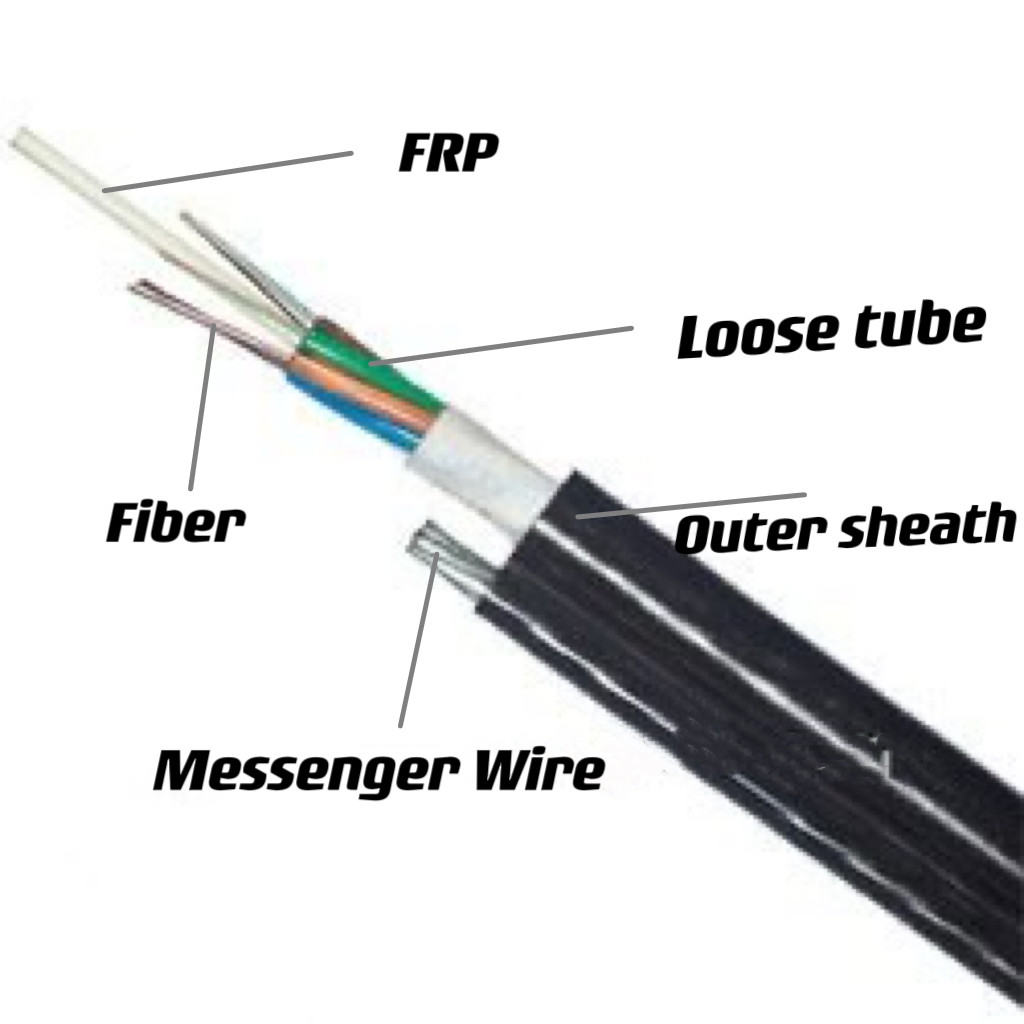

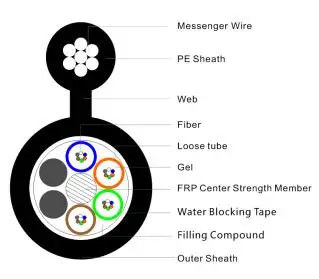

The fiber is placed in a loose sleeve made of high modulus plastic. The pipes are filled with a waterproof filler. The FRP is located at the center of the core and acts as a strength member. These tubes are twisted around the strength member to form a compact circular cable core. This part of the cable, together with the stranded wire as a support part, is completed with a PE sheath of figure 8 structure.
Characteristics:
◆ Low loss, low dispersion.
◆ Reasonable design, accurate residual length control and cable forming process, so that the optical cable has mechanical and environmental performance.
◆ Non-metal cable core, with strong anti-electromagnetic interference ability.
◆ Compact structure, light weight, self-supporting erection.
| item | value |
| Model Number | GYFTC8Y |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
