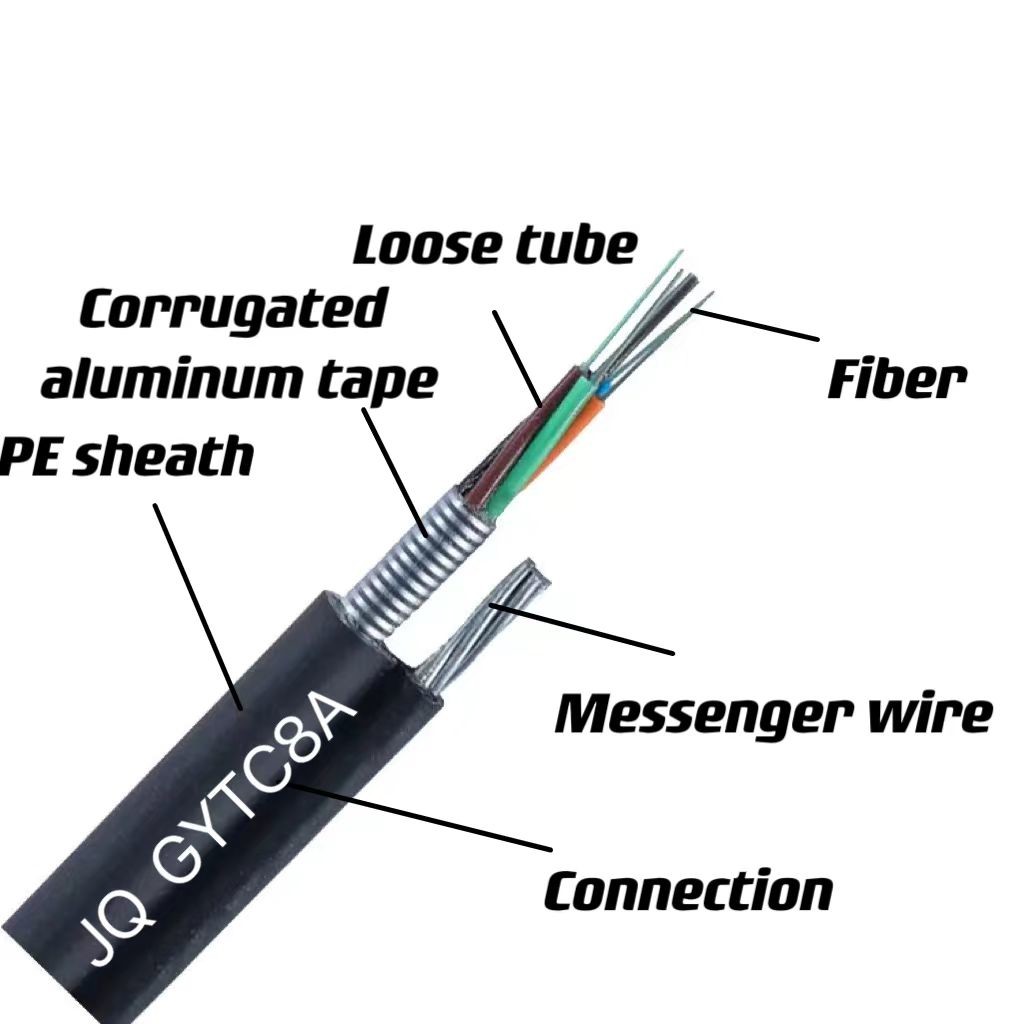

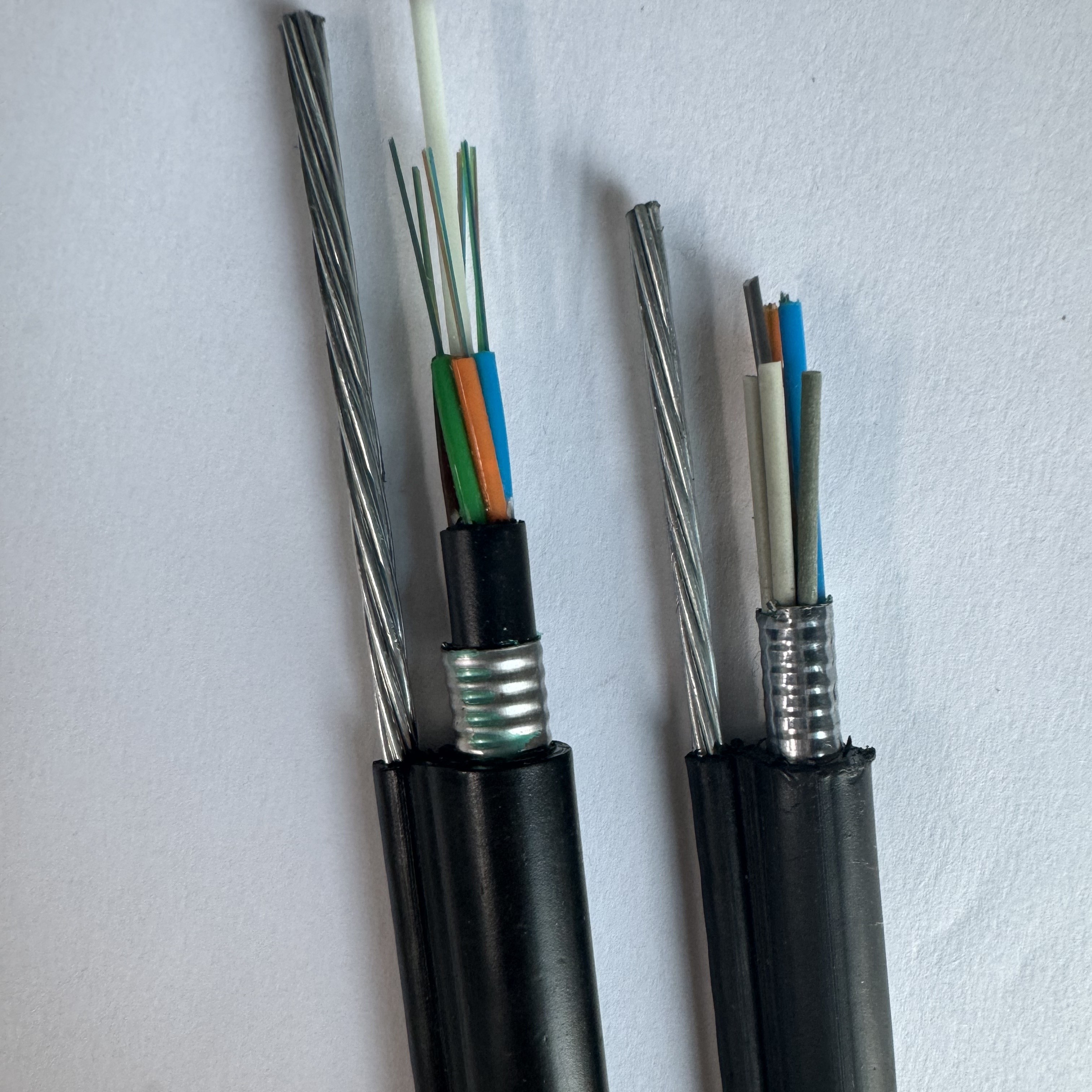

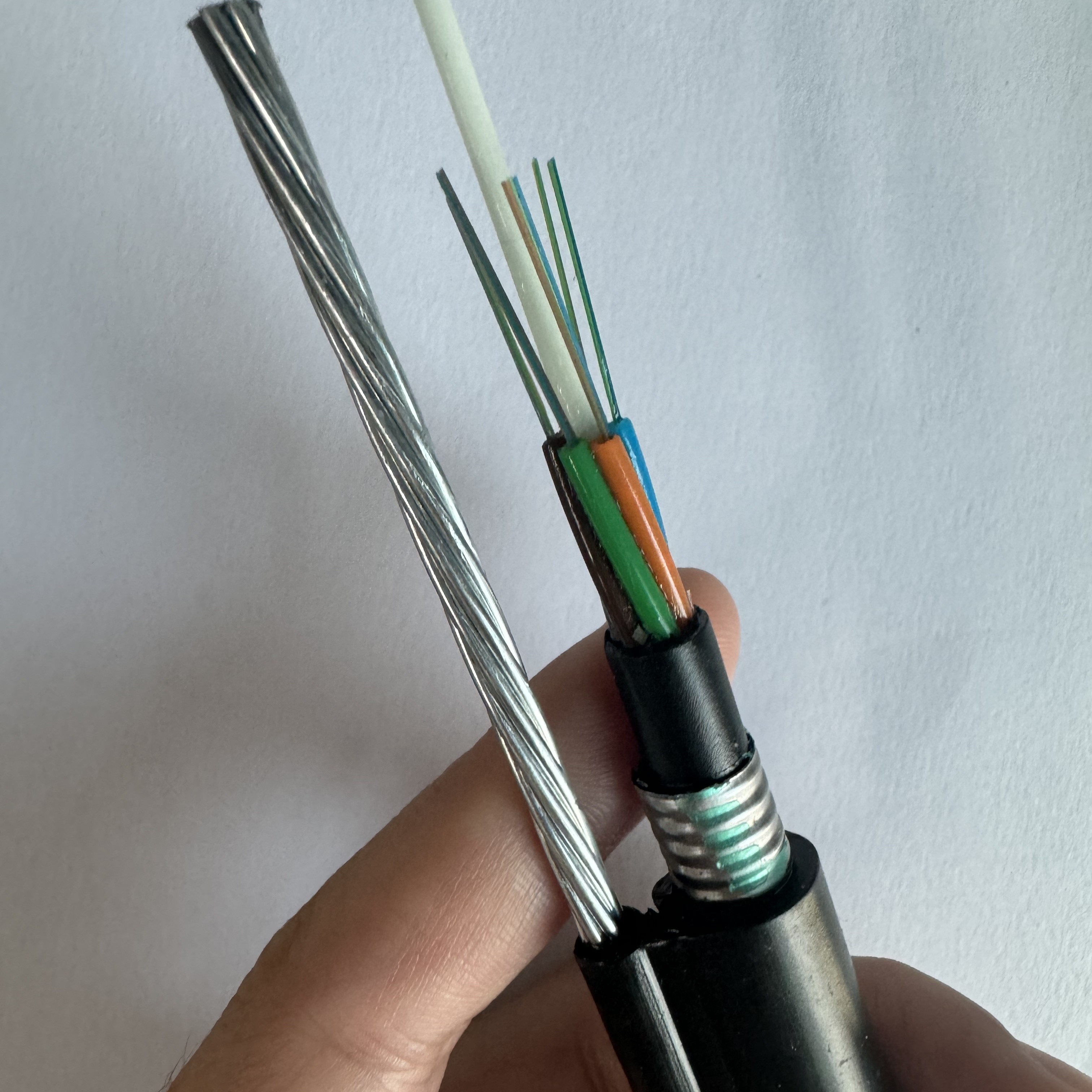

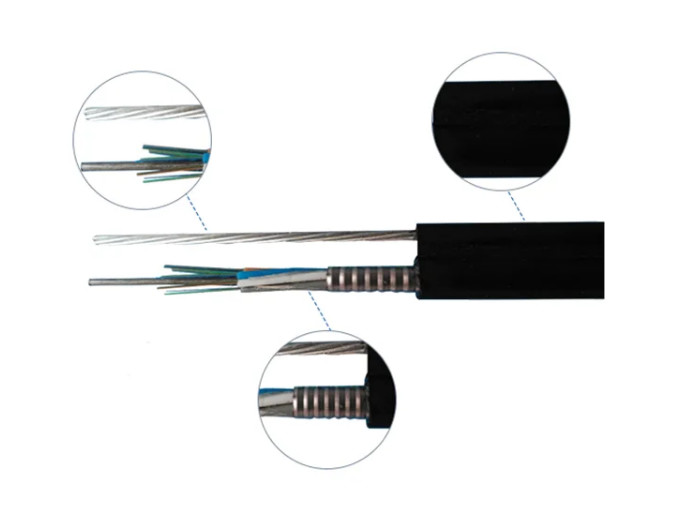

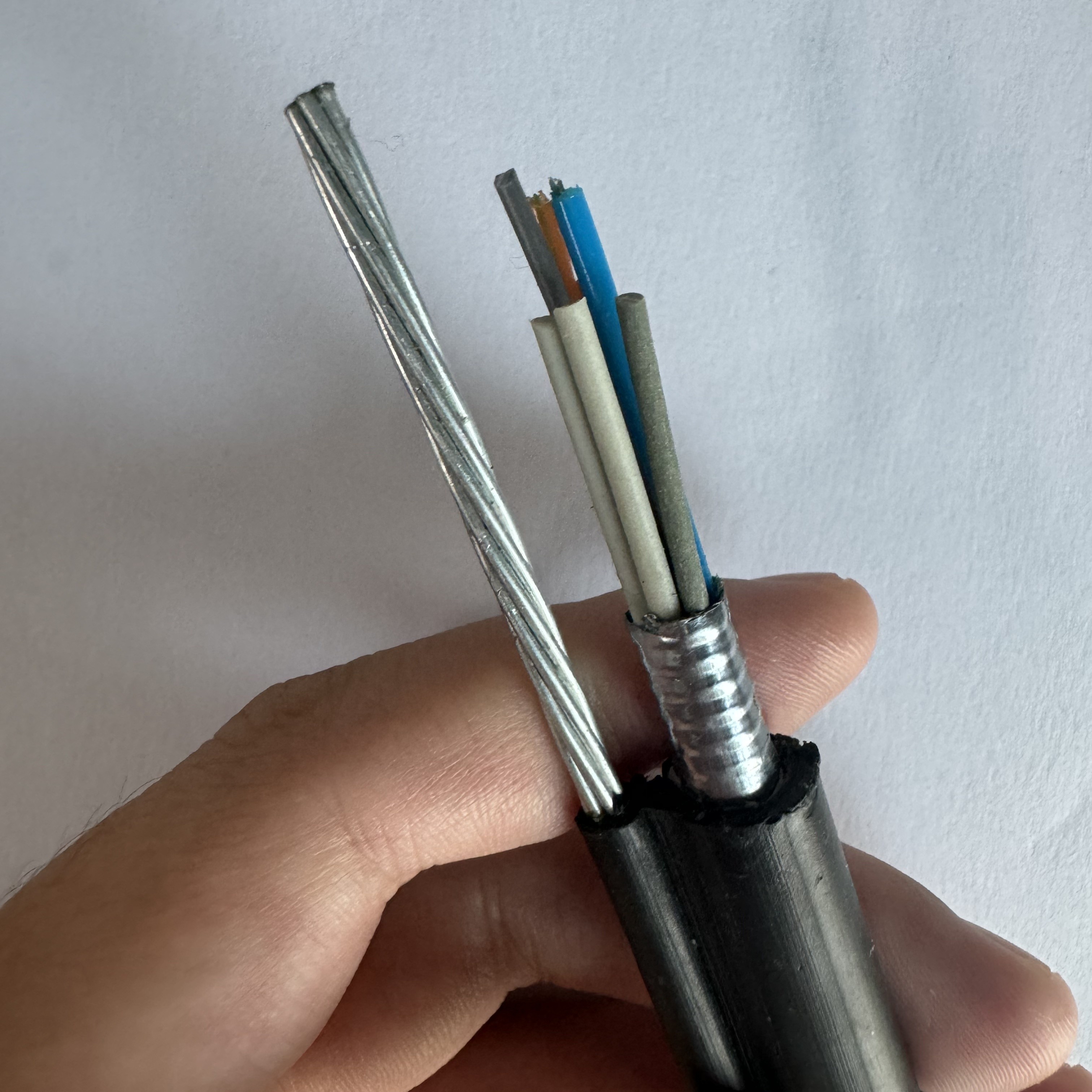

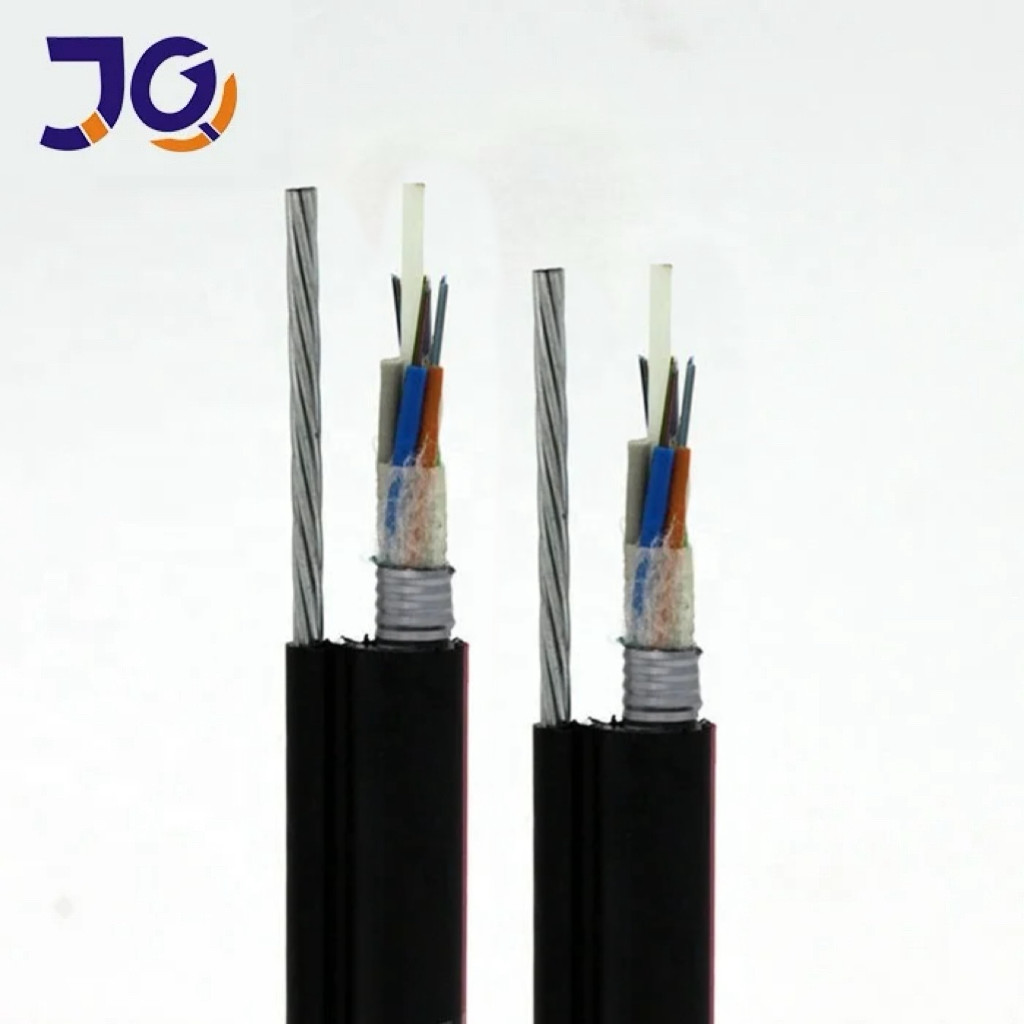

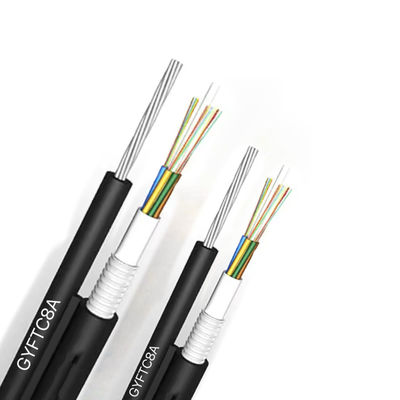

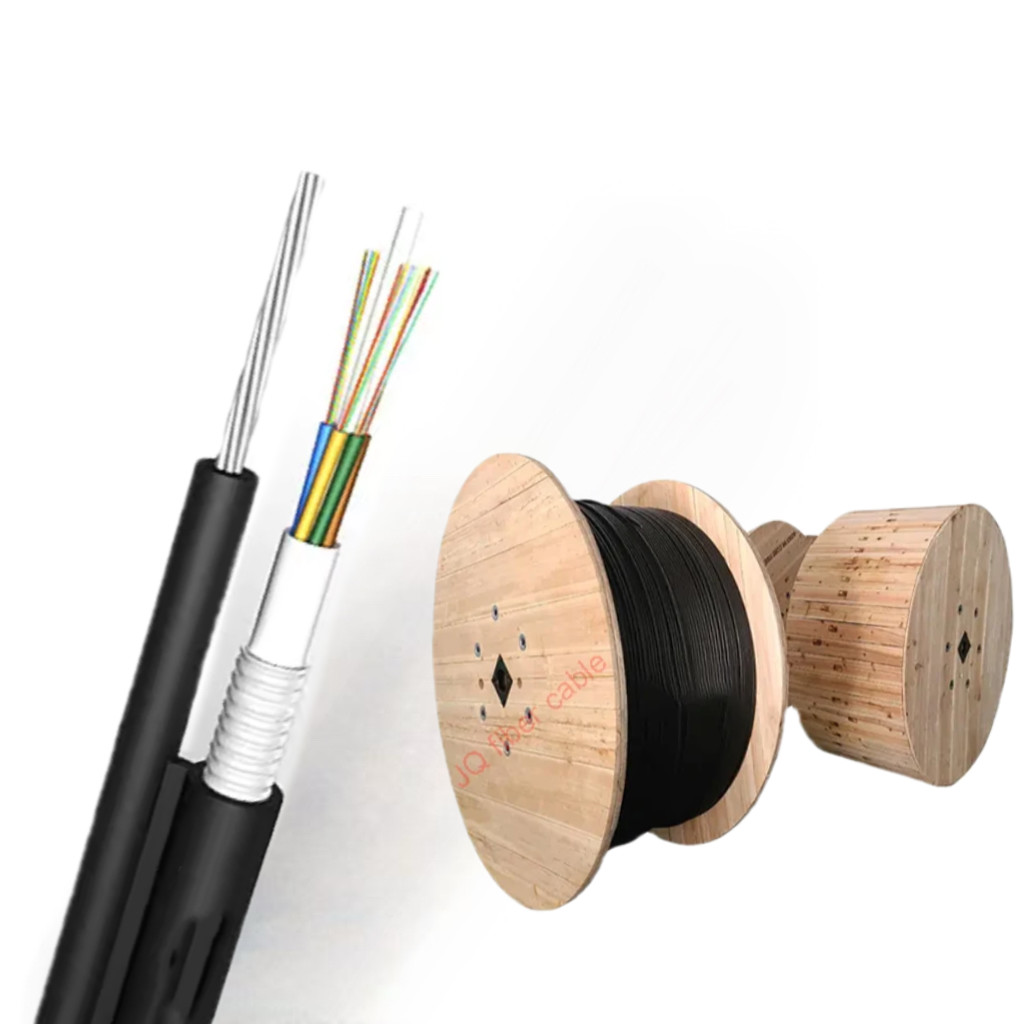

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A

Contact Now

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A

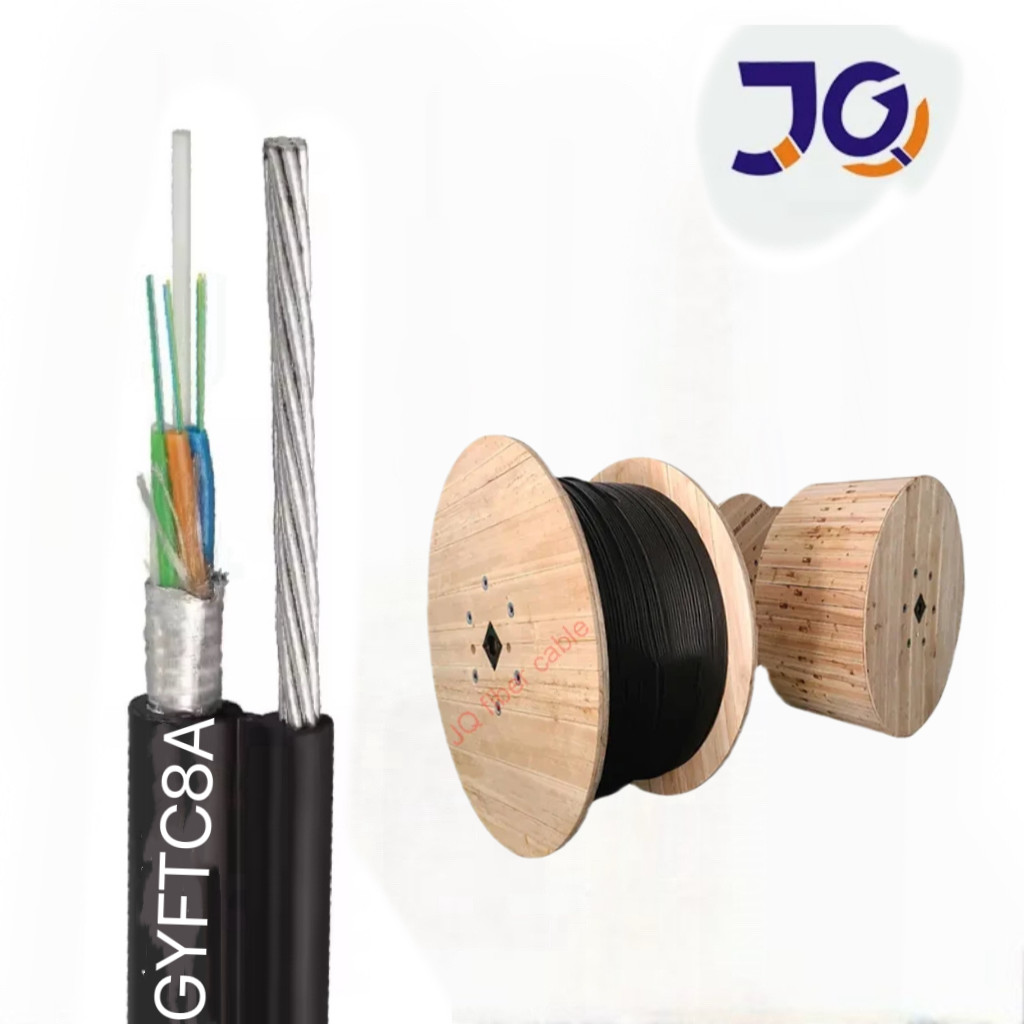

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Brand Name:	JQ/OEM	Certification:	CE/ISO9001

Detail Information
Place Of Origin:	Guangdong, China	Model Number:	GYTC8A GYFTC8A
Type:	Outdoor Fiber Optic Cable	Number Of Conductors:	≥ 10
Fiber Type:	G652D Single Mode Or As Your Request	Length:	As Required
Color:	Customized	Loose Tube:	PBT
Jacket:	PE,MDPE,LSZH,PVC	Strength Member:	FRP
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Cable Structure:	Stranded Loose Tube
High Light:	Optical Fiber APL Armored Cable , Outdoor APL Armored Cable , Overhead APL Armored Cable

Product Description

Product Description

1.Max attenuation : 0.34dB @ 1310nm and 0.21dB/Km @1550nm
2.Fiber : G652D
3.Installation : self- supporting Aerial
4. Application : Apply to Long distance communication system, Local area network system
5. Lifetime : above 30 years
6. Operating temperature : -40℃~+70℃
7. Permisson bent radius Static : 10 times O.D.
8.Dynamic : 20 times O.D.

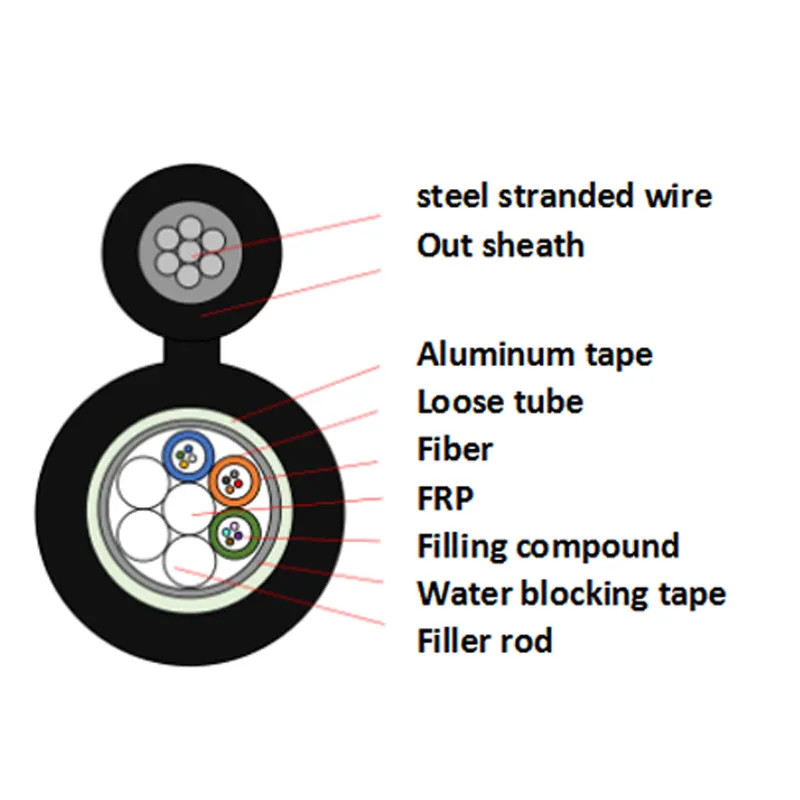

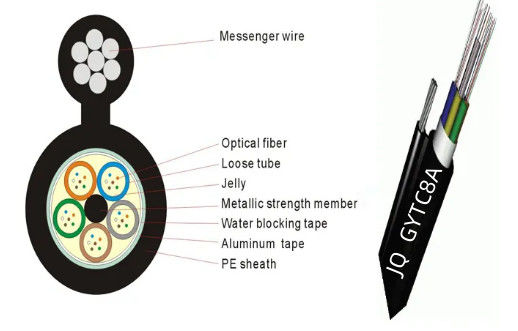

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A 0

Characteristics:

* High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

* Good mechanical and temperature performance.

* High strength loose tube that is hydrolysis resistant.

* Special tube filling compound ensure a critical protection of fiber. The following measures are taken to ensure the cable watertight:

* FRP or mental used as the central strength member

* Loose tube filling compound

Application:

* Adopted to outdoor distribution.
* Suitable for aerial.
* Long distance and local area network communication.
Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

Technical parameters:

Items	Unit	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A 1

WHY CHOOSE US:

Certification:

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A 4

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
