Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines
Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines
Contact Now

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines

Minimum Order Quantity : 1KM Price : 200-900USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: MGTSV33

Detail Information
Fiber Count: 2-288Core Strength Member: Steel Wire Around,armour,Metal Reinforcement
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM
High Light:

LSZH Optical Fibre Cable

,

MGTSV33 Optical Fibre Cable

,

G652D Optical Fibre Cable

Product Description

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For Coal Mines



Application

1. Mine
2. tunnel
3. pipeline

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 0
Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 1

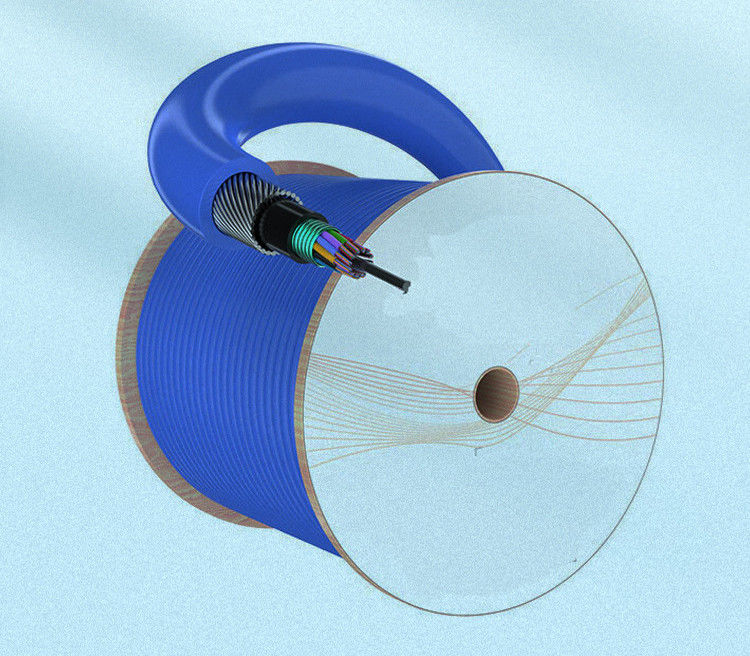

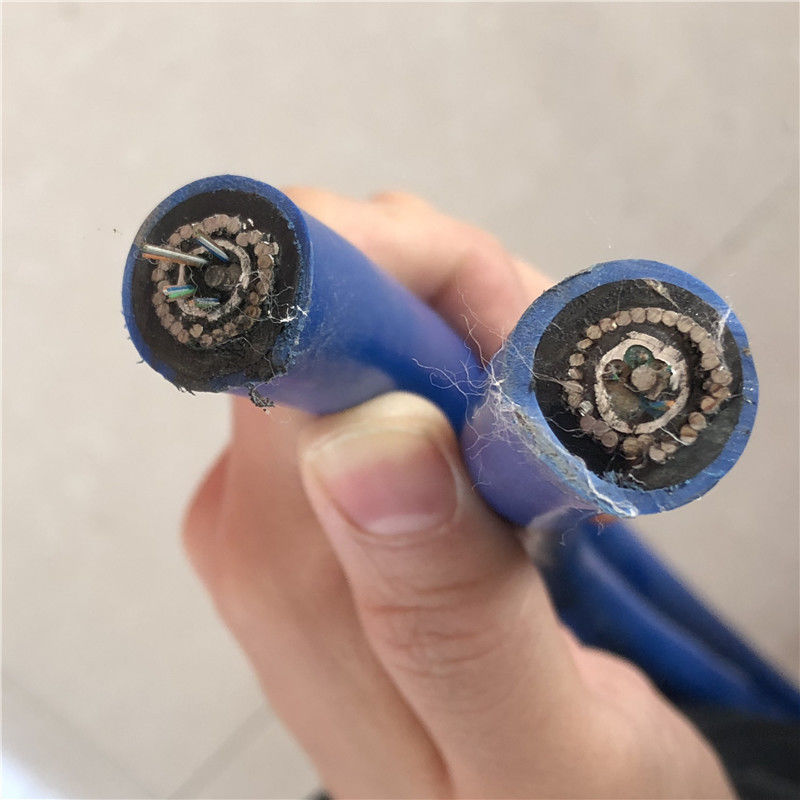

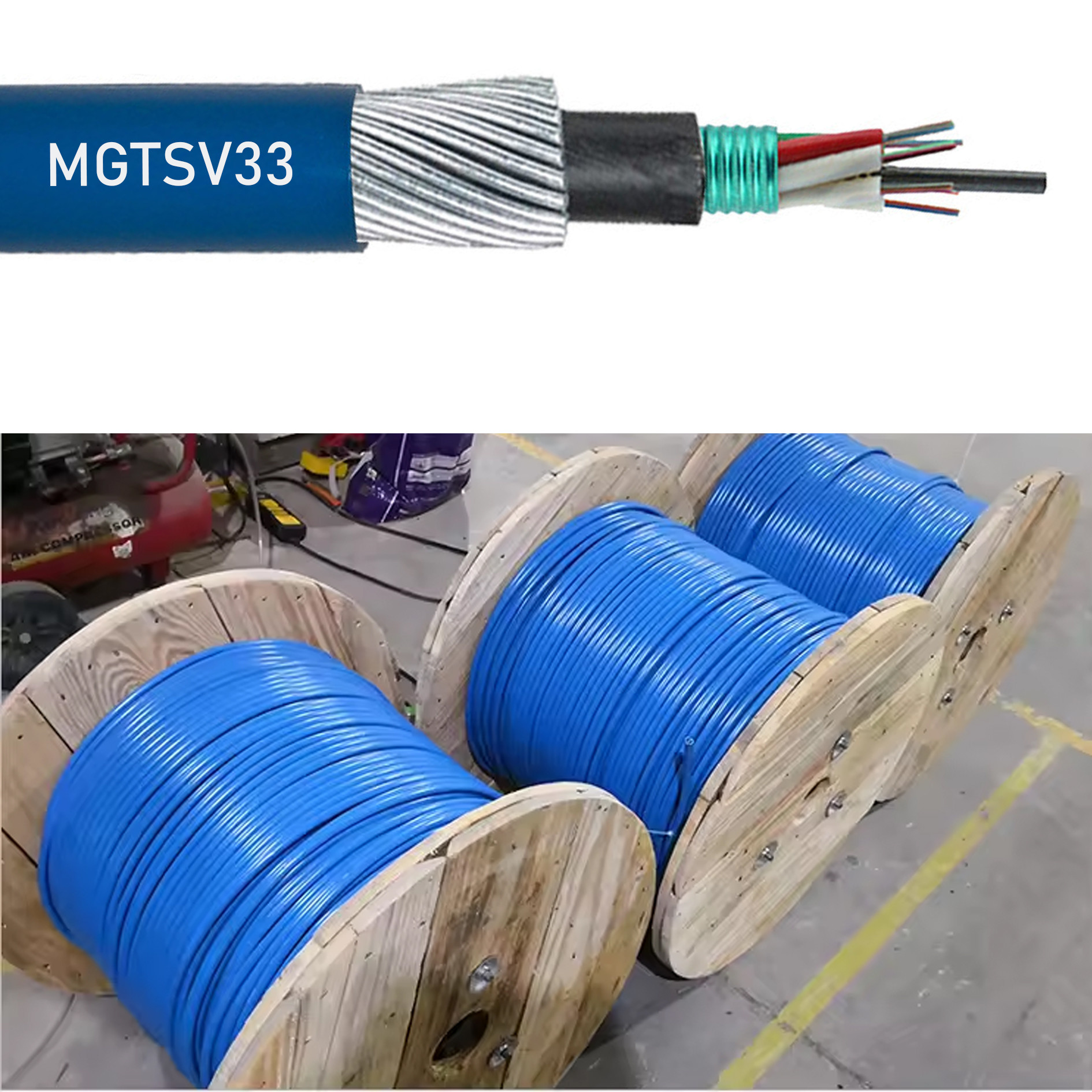

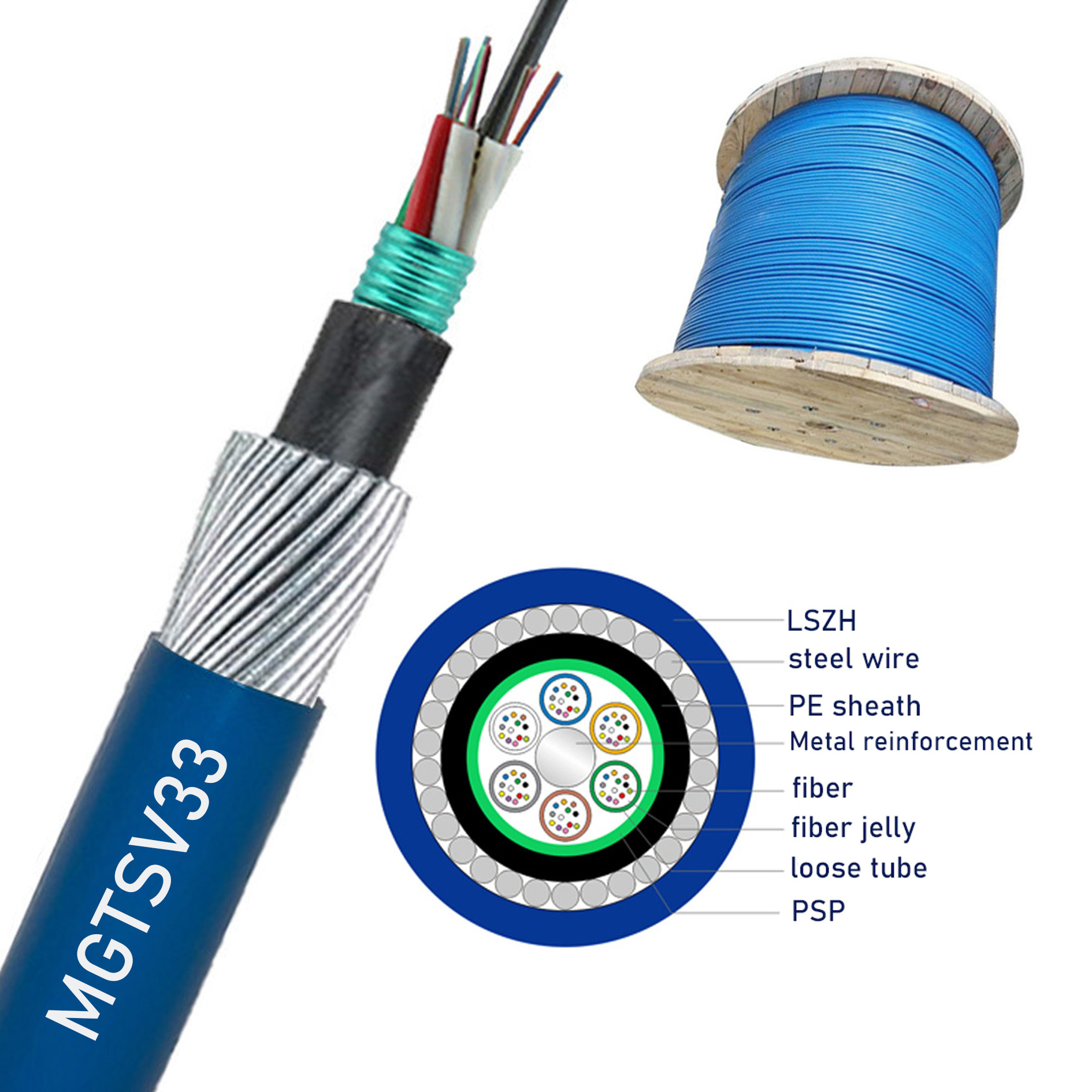

Product description:

* Double sheath structure with good compression resistance
* Low smoke and halogen free outer sheath with flame retardant effect
* Steel wire around with good mechanical property

Product features:
1. Temperature characteristics and water resistance are good
2. Good compression and softness
3. suitable for mine tunnel pipeline
4. double sheath + armour + steel wire surrounded to make it durable

Specification
Product Name
LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For Coal Mines
Fiber Count
4-288 Fibers,can be customized according to customers' requirement
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
LSZH
Application
Mine tunnel pipeline
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Color
usually black,can be customized
OEM
YES
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Cable parameter for reference
Fiber quantity
Diameter for reference (mm)
weight for reference (kg/km)
Allowable tension (N)
long/short term
Allowable side pressure (N)
long/short term
bending radius
Static/
dynamics
2-12
13.6
390
4000/10000
1000/3000
12.5D/25D
14-24
15.2
475
4000/10000
1000/3000
12.5D/25D
Related Products
Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 2
Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 3
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery

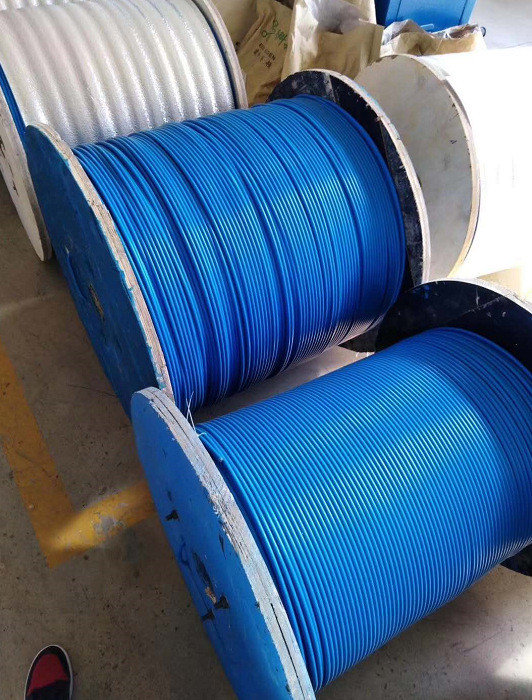

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 4
Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 5
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
00:00

00:12

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 6

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines 7
