Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYTC8S GYTC8A GYTC8Y |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Tube: | PBT |
| Messenger Wire: | Stranded Steel Wire | Outer Sheath: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | ||

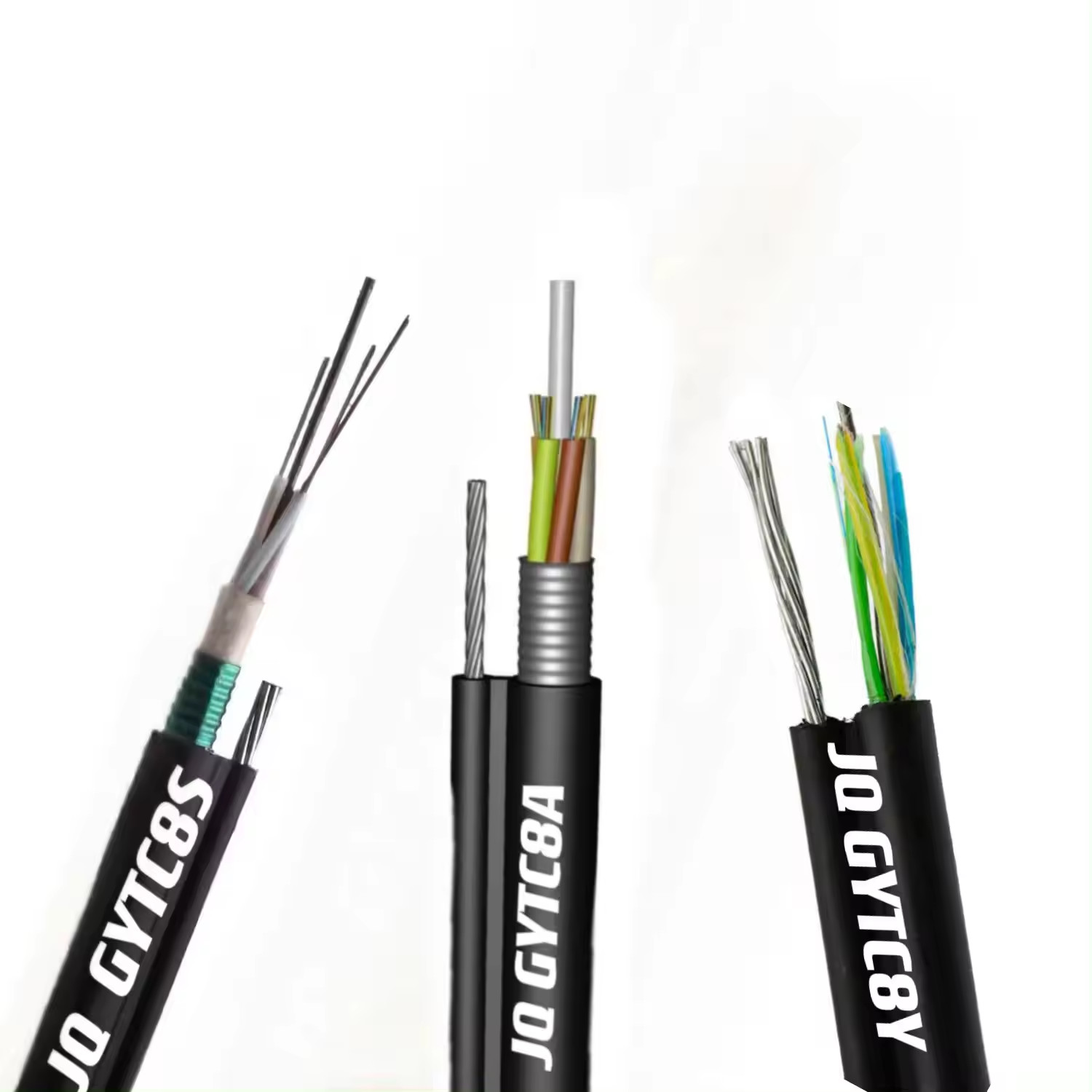

| High Light: | GYTC8A 8 Optical Cable,Overhead 8 Optical Cable,GYTC8Y 8 Optical Cable |
||
Product Description
Product Description:
Characteristics:
■ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast. ■ Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant.
■ Special tube lling compound ensure a critical protection
■ Small cable diameter, light cable weight, self-supporting, easily to install

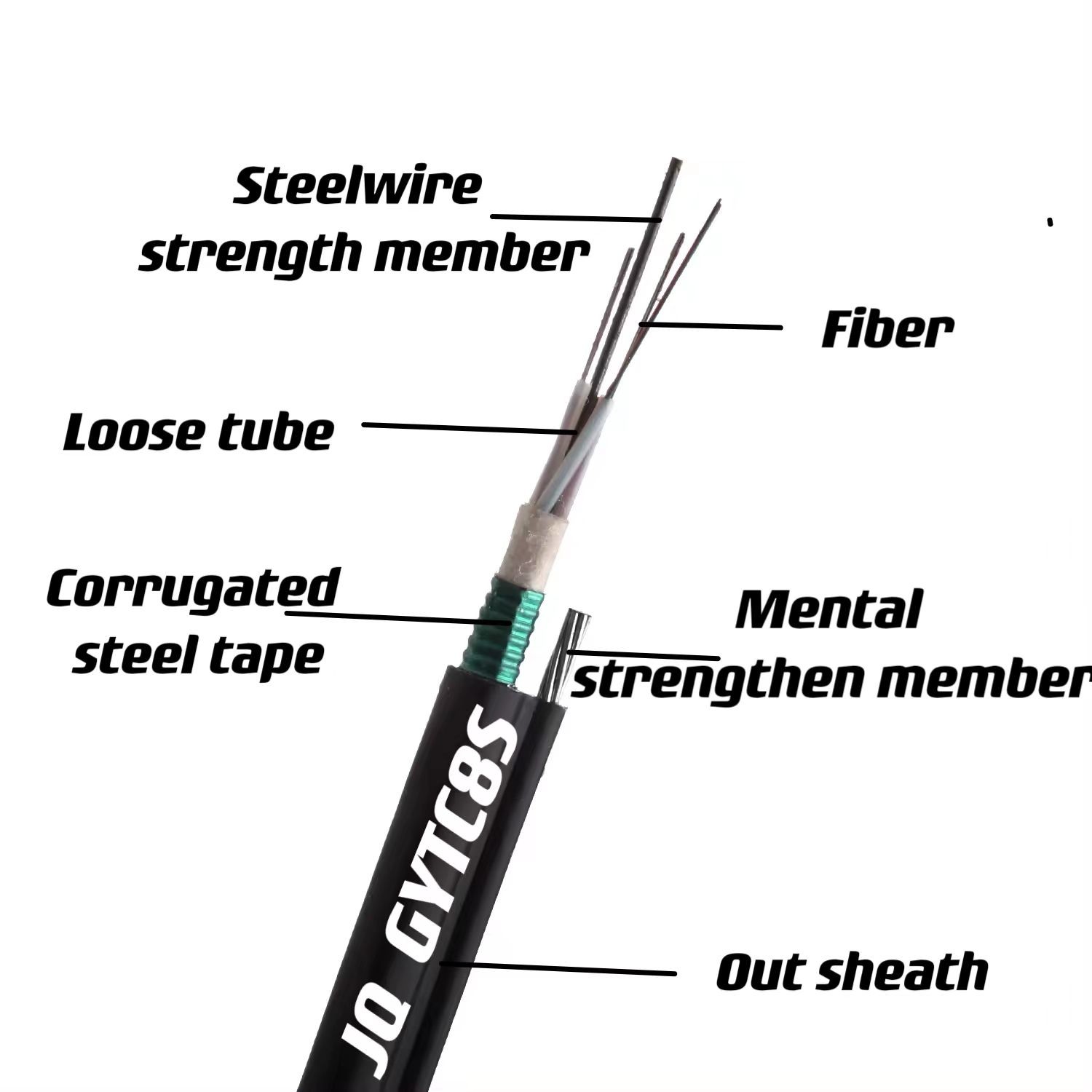

The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member.
-Loose tube lling compound 100% cable core lling.
-APL moisture barrier.
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |

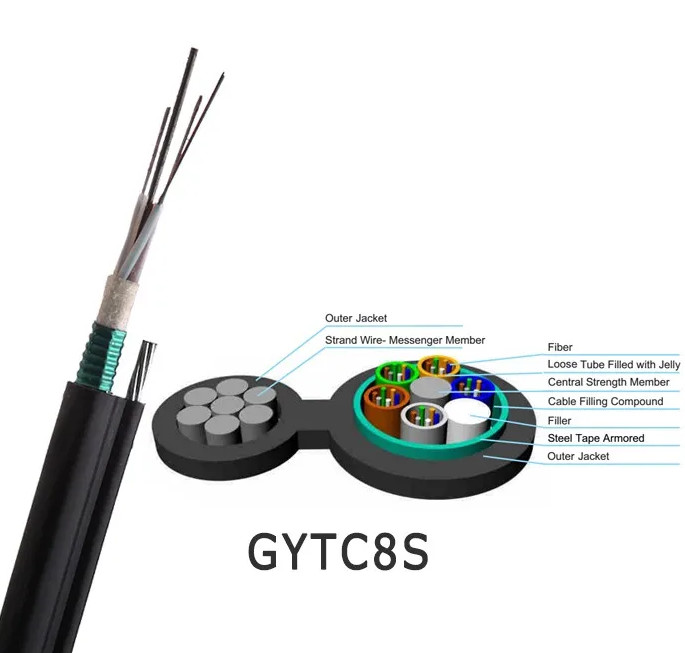

Structure and Technical Specifications:
| Cable Type | Fiber Count | Cable Diameter | Cable Weight Kg/km | Supporting Wire Spec | Connection Diameter mm | Tensile Strength | Crush Resistance N/100m | Bending Radius |
| mm | N | mm | ||||||
| GYXTC8S | 2～12 | 7.0×14.0 | 118 | ф1.0mm×7 | High * width | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand | 3.0×2.5 | |||||||
| GYXTC8S | 14～24 | 8.0×15.1 | 129 | ф1.0mm×7 | High * width 3.0×2.5 | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
