Home ProductsFigure 8 Fiber Optic CableGytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable
Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable
Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable
Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable
Contact Now

Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYTC8S

Detail Information
Fiber Type: Single Mode & Multi Mode Oem: Available
Application: Aerial Number Of Conductors: 12 24 48
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Length: 1KM OR 2KM OR 500M
Highlight:

Aerial Figure 8 Fiber Optic Cable

,

G652d Figure 8 Fiber Optic Cable

Product Description

GYTC8S Figure 12 24 Stranded Loose Tube Messenger Wire Aerial outdoor Fiber Optic cable

Figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.


Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 0
Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 1
Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 2Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 3



Cable Parameters:
Items
Specifications
Colored Coating Fiber
Dimension
250µm±15µm
Colors
Blue, Orange, Green, Brown, Gray, White, Red, Black

Loose Tube
Dimension
2.0 mm±0.1mm
Material
PBT
Color
Blue, Orange, Green, Brown, Gray, White
Steel Strength Member
Diameter
1.0mm x7
Material
Steel

Outer Jacket
Dimension
Upper 6.0mm±0.1mm, lower part 9.6mm±0.1mm
Material
PE
Color
Black



Cable Specification:
Item Name:GYTC8S cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

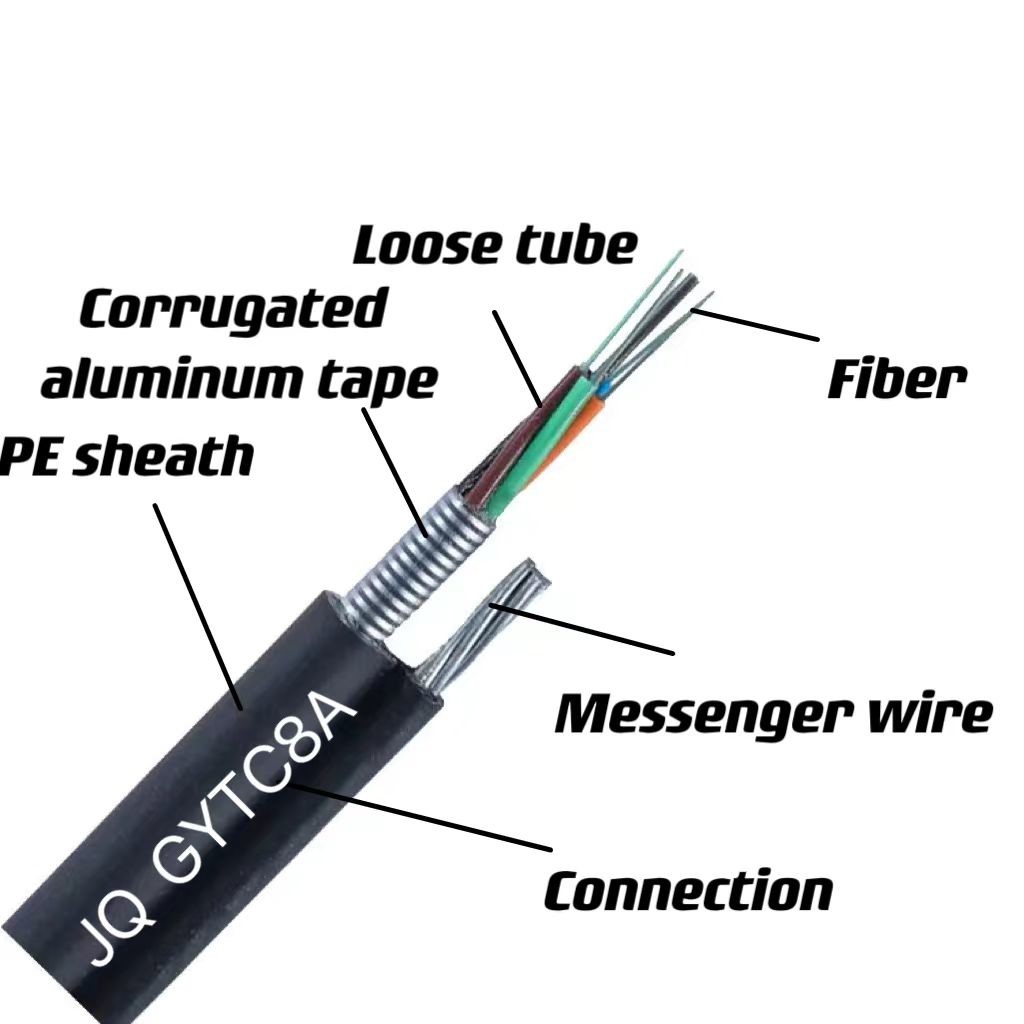

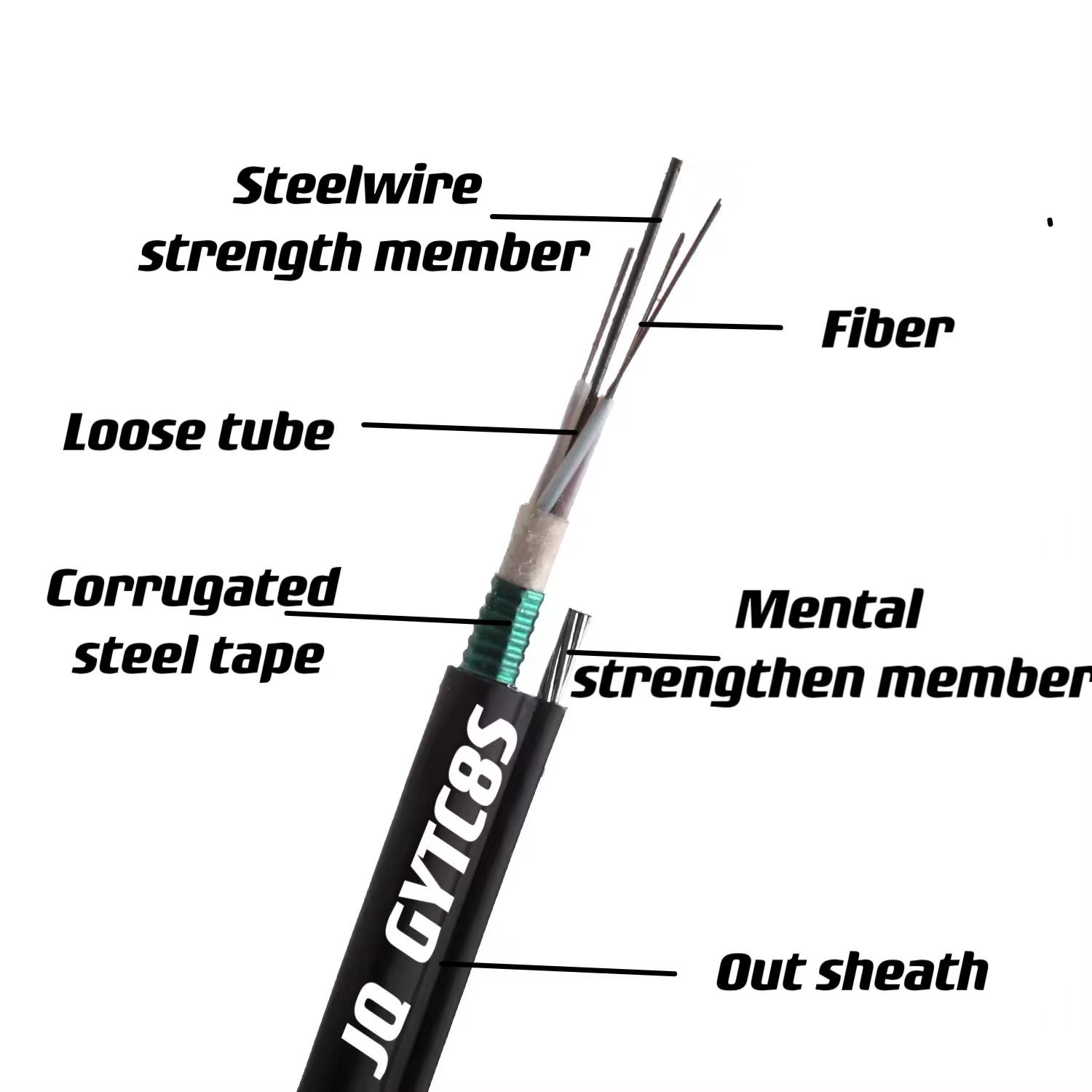

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001


Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility

Company profile:

Guangzhou Jiqian fiber optic calbe Co.,Ltd is a high-tech company group engaged in researching,manufacturing,selling communication products with our import and export rights.



Our corporation is a professional manufacturer of fiber optic cable,FTTH drop cable and patch cord over 10 years,with ISO RoHS CE certificates.We OEM or design any structure of fiber optic cable for you.

The main products of our company are :optical fiber cable,fiber patch cords and other related items,all of our products are widely used in telecom,network. and exported to all over the world,such as Mildives,south africa,Malaysia,Iraq,India,Pakistan etc

Welcome to visit our factory in Guangzhou,China

Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 4

Packing :

2km/3km/4km per wooden drum or customized

Port:Shenzhen/Guangzhou

Lead time:

Quantity(km) 100-300 >300
Est time(day) 3 negotiable



Gytc8s Aerial Self-supporting Figure 8 Structure Gytc8s 12 24 48 96 144 288 Core G652d Fiber Optic Cable 5





FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available


3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?


L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?


Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
