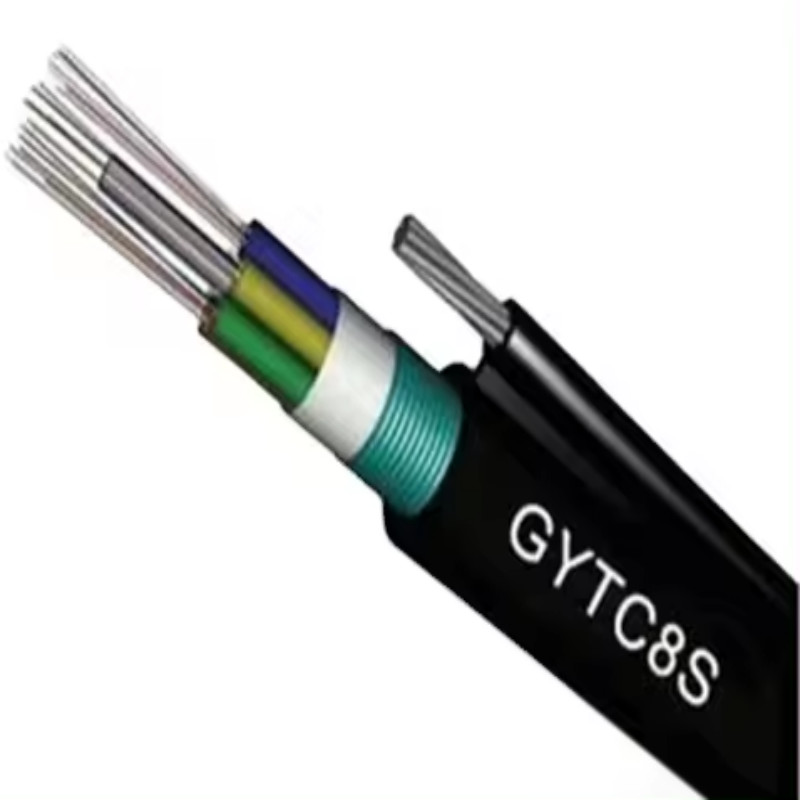

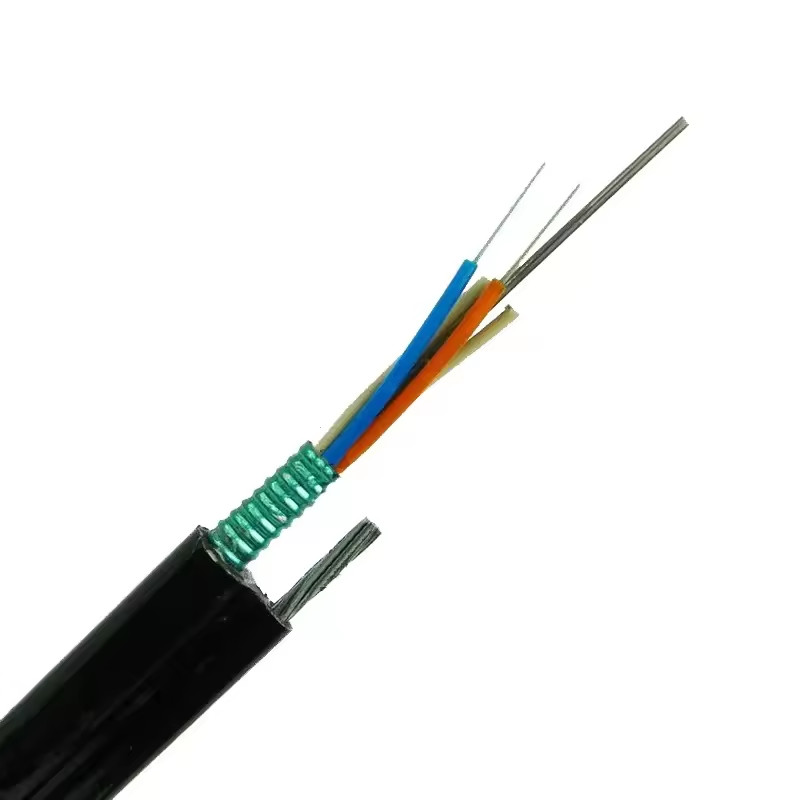

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable

Contact Now

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYTC8S

Detail Information
Model Number:	GYTC8S-144F	Type:	Outdoor Fiber Optic Cable
Place Of Origin:	Guangdong, China	Fiber Type:	G652D/G657A1/G657A2
Color:	Customized	Jacket:	PE,MDPE,LSZH,PVC

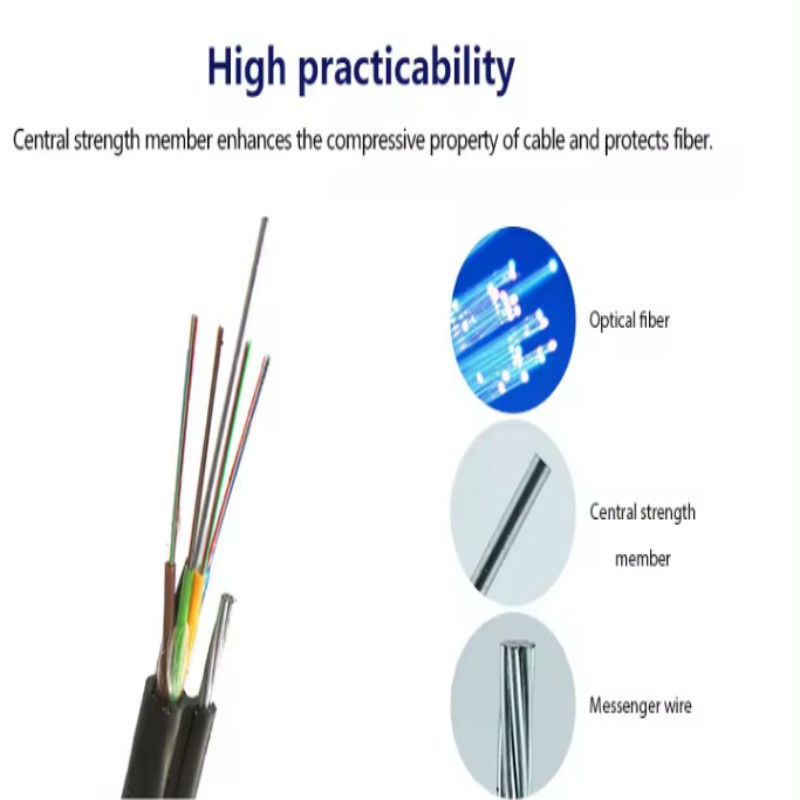

Central Strength Member:	Steel Wire	Armor:	Steel Tape
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Service:	OEM ODM Accept
Max Crush Resista:	1000/3000N	Tension:	3000/6000N
Highlight:	Aerial Figure 8 Fiber Optic Cable , Outdoor Figure 8 Fiber Optic Cable , Outdoor Optical Fiber Aerial Cable

Product Description

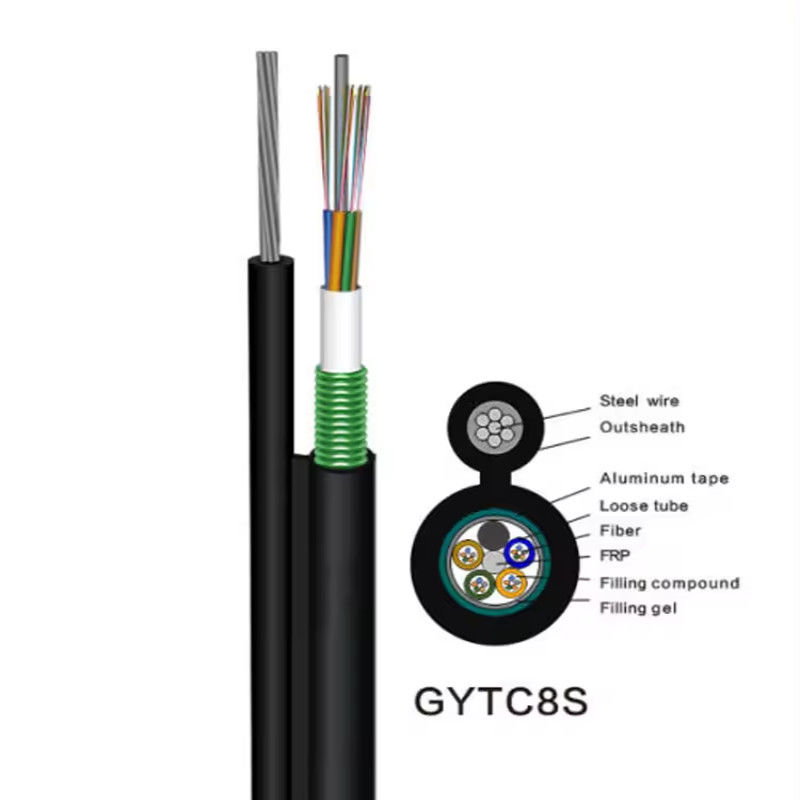

The structure of the standard figure-eight self-supporting stranded optical cable is that multimode or single mode fiber optic cables are sheathed in a loose tube made of high modulus plastic, and the tube is filled with a water blocking compound. The center of the cable core is a metal reinforced core. For certain fiber optic cables, a layer of polyethylene needs to be squeezed outside the metal-reinforced core. The loose tube (and filler rope) is twisted around the central reinforced core to form a compact and Round cable core, the gap in the cable core is filled with water blocking filler. The cable core is longitudinally wrapped with steel-plastic composite tape, and placed in parallel with the steel strands while extruding a figure-eight sheath into a cable.

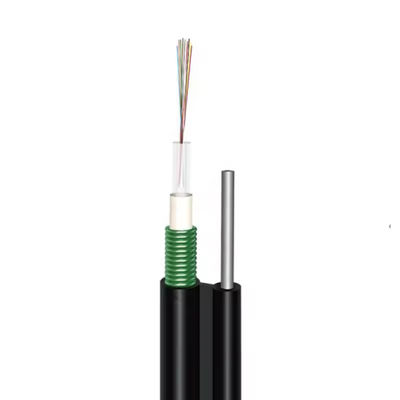

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable 0

Advantages:
1.Use high-quality optical fiber to ensure that the optical cable has excellent transmission performance 2.Accurately control the excess length of the outdoor fiber optic cable to ensure that the optical cable has excellent mechanical and high/low-temperature characteristics 3.Full-section water-blocking structure to ensure good water-blocking and moisture-proof performance 4.The loose tube is filled with special grease to protect the optical fiber critically 5.The longitudinally clad steel tape strengthens the resistance to lateral pressure of the optical cable.

Product Parameters:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTC8S

12-288

7-20mm

70-300

3500/7000N

300/1000

15D/30D

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

Packing Details:
1-5km/roll. Packed by carton box,wooden drum. Other packing available according to client's Request.

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable 1

Company Profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Europe,Mideast and Southeast Asia.Africa.

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable 3

Certification:

OEM 144 Core Outdoor Optical Fiber Aerial Cable Steel Wire Strand Self Supporting Figure 8 GYTC8S Fiber Optic Cable 5

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
