48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION
48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION
48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION
Contact Now

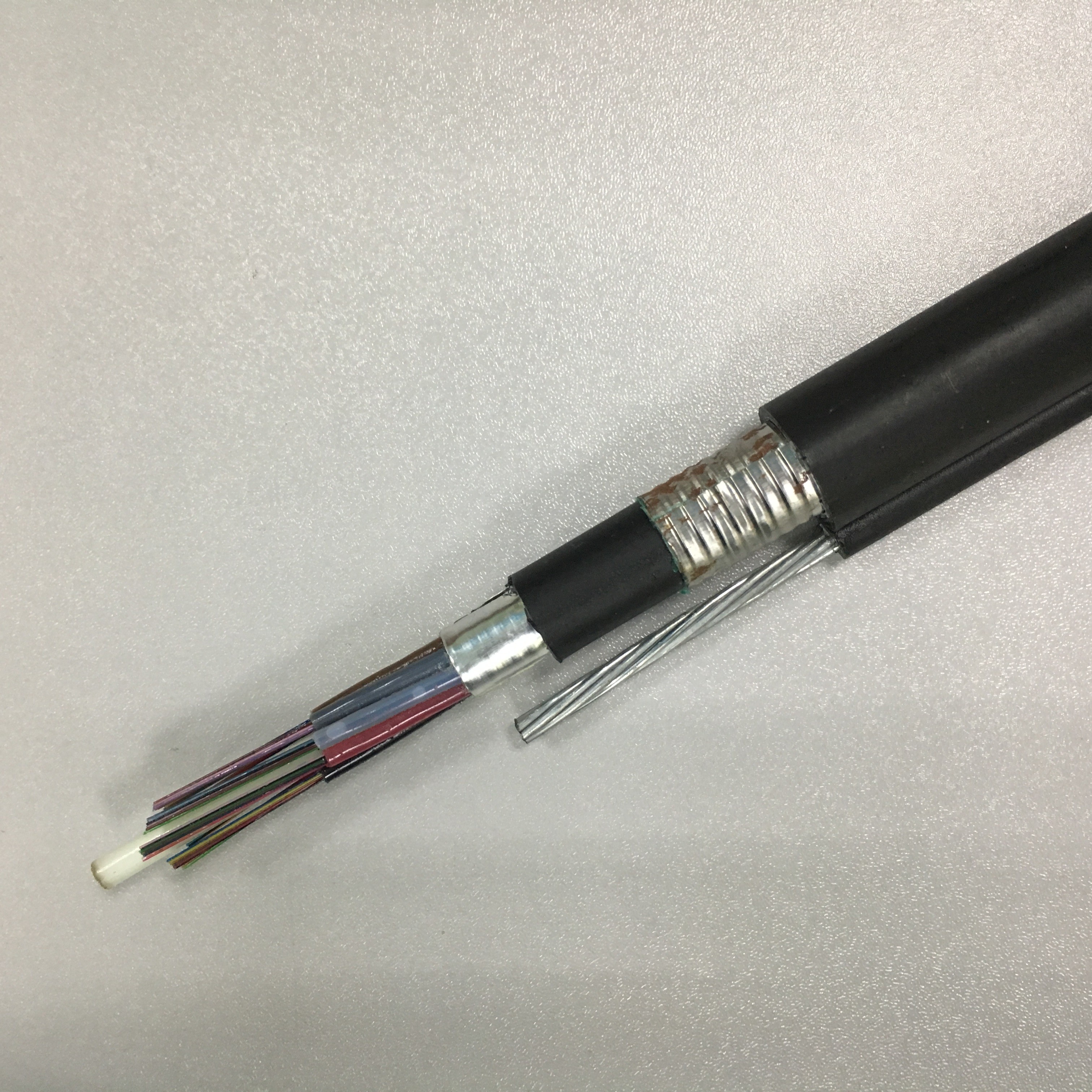

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: JQ
Certification: ISO9001 Model Number: GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53

Detail Information
Fiber Type: Single Mode Oem: Available
Application: Aerial Number Of Conductors: 12-144
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Length: 2KM Material: MDPE
Highlight:

GYTC8A FIGURE 8 FIBER OPTIC CABLE

,

GYTC8S FIGURE 8 FIBER OPTIC CABLE

Product Description

Self-Supporting Figure 8 Fiber Optic cable

figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme

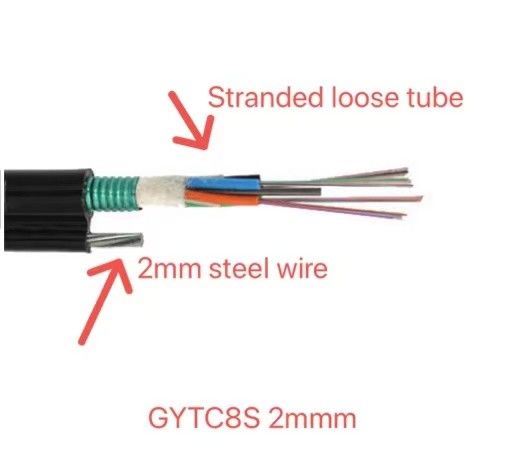

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 0


Fiber Color Code

Fiber color in each tube starts from No. 1 Blue.

1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Grey White Red Black Yellow Purple Pink Aqua



Color codes for loose tube & filler rod

Tube color starts from No. 1 Blue. If there are fillers, the color is natural.

1 2 3 4 5 6 7 8
Blue Orange Green Brown Grey White Red Black

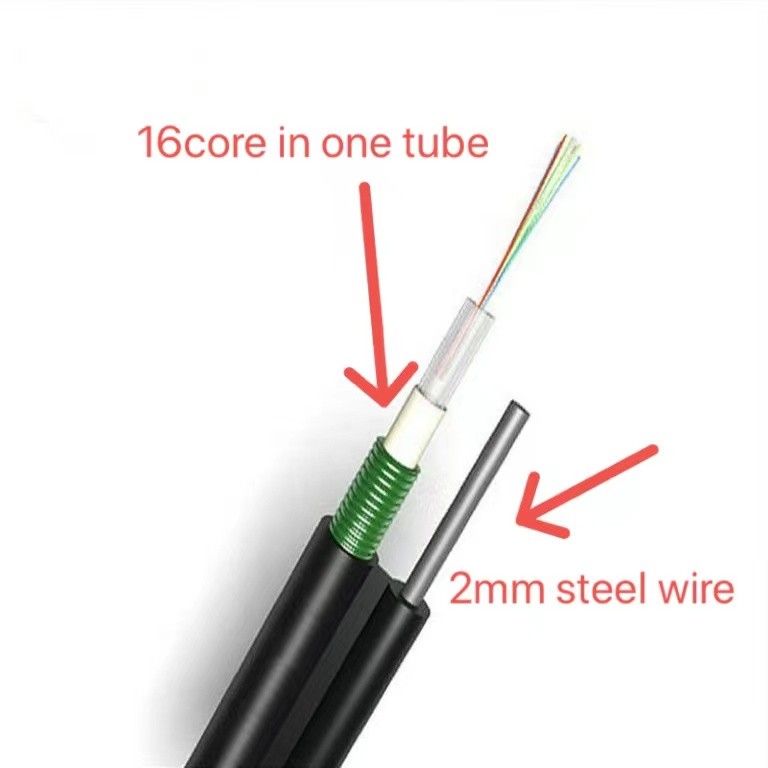

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 1


Optical Characteristics

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm





Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber

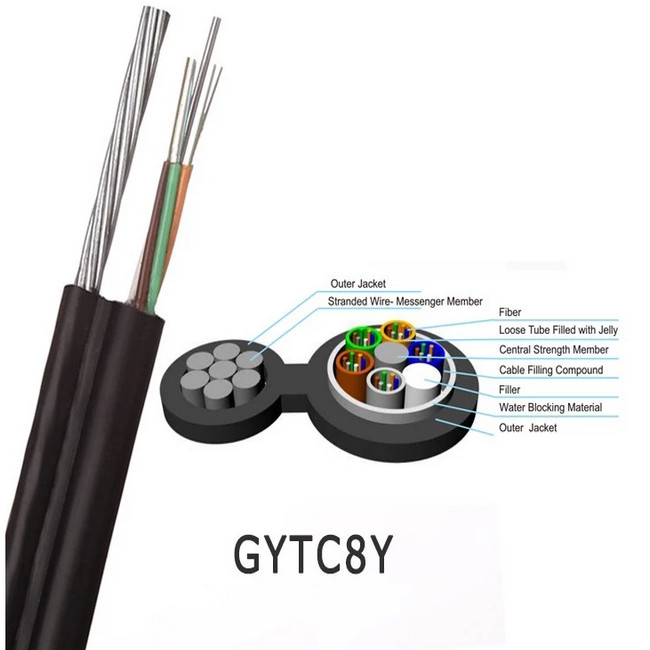

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 2

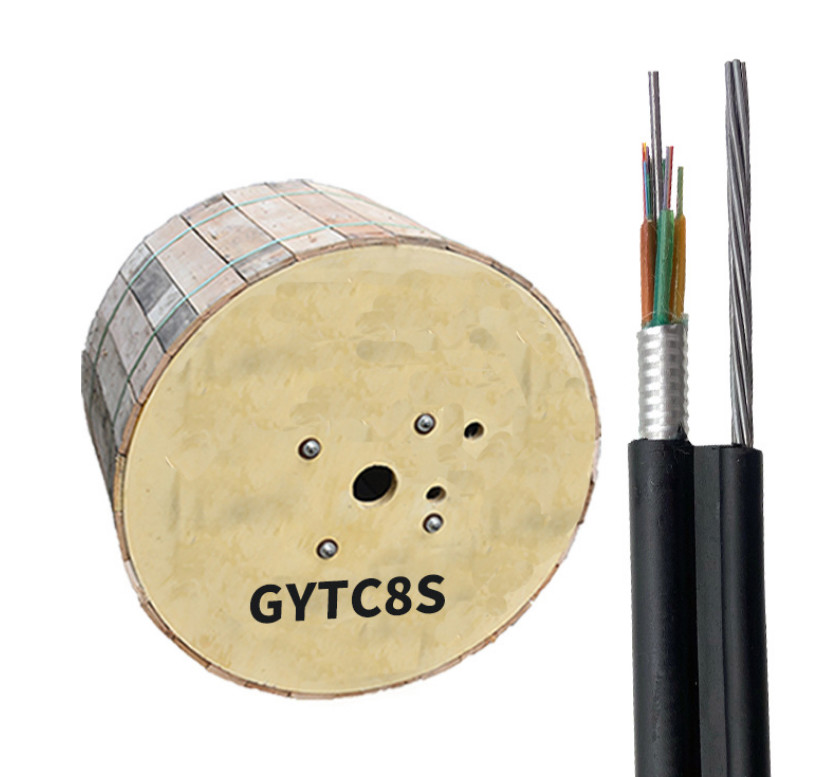

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 3

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION 4

We can customized fiber cable with color strips(vitta) if you need it!
