JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTC8S

Detail Information

Model Number: GYTC8S-60F Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Fiber Type: G652D Single Mode Or As Your Request
Color: Customized Structure: Figure 8 Self-supporting
Jacket: PE,MDPE,LSZH,PVC Central Strength Member: Steel Wire
Armor: Corrugated Steel Tape Package: Wooden Drum/Customized
Length: 3000M/drum, Or As Required Application: Aerial,Overhead
Oem: Available Certification: CE/ROHS/ISO9001
Operating Temperature: -40℃~+70℃ Warranty (Year): 2
Highlight:

1km figure 8 cable

,

60 core figure 8 cable

,

72 core figure 8 cable

Product Description

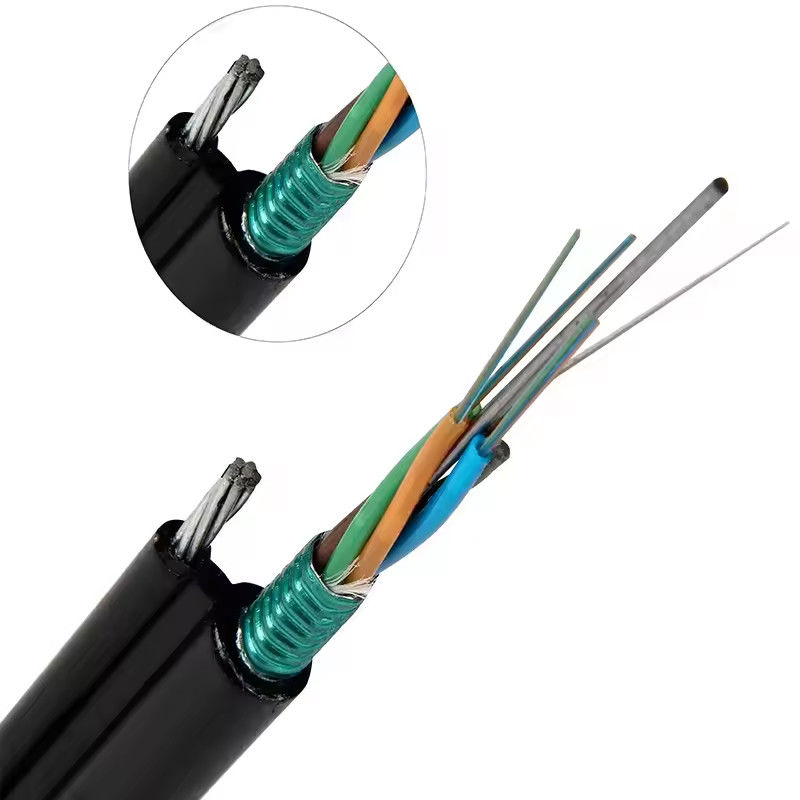

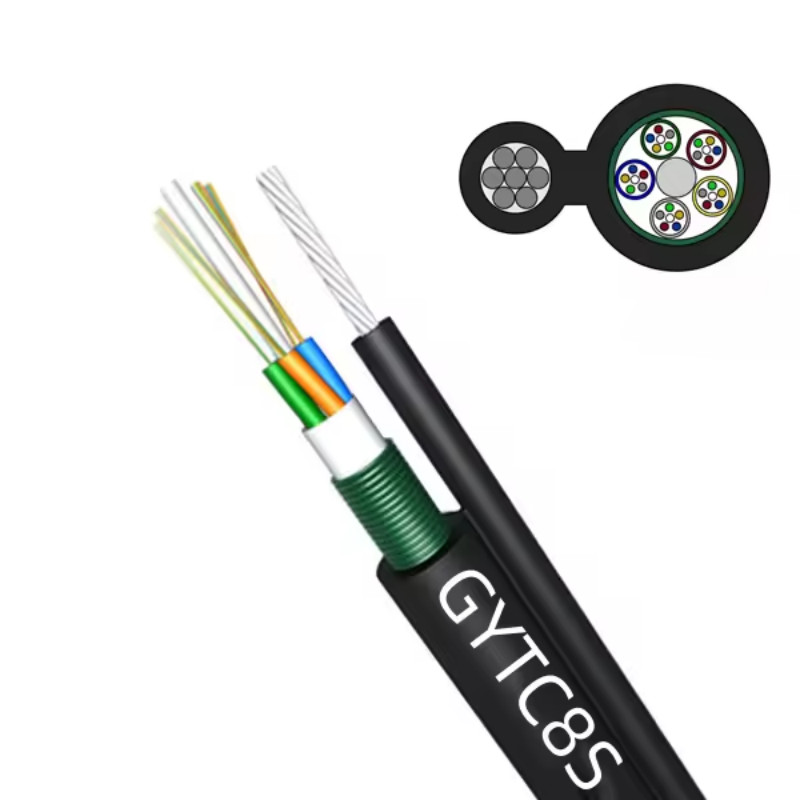

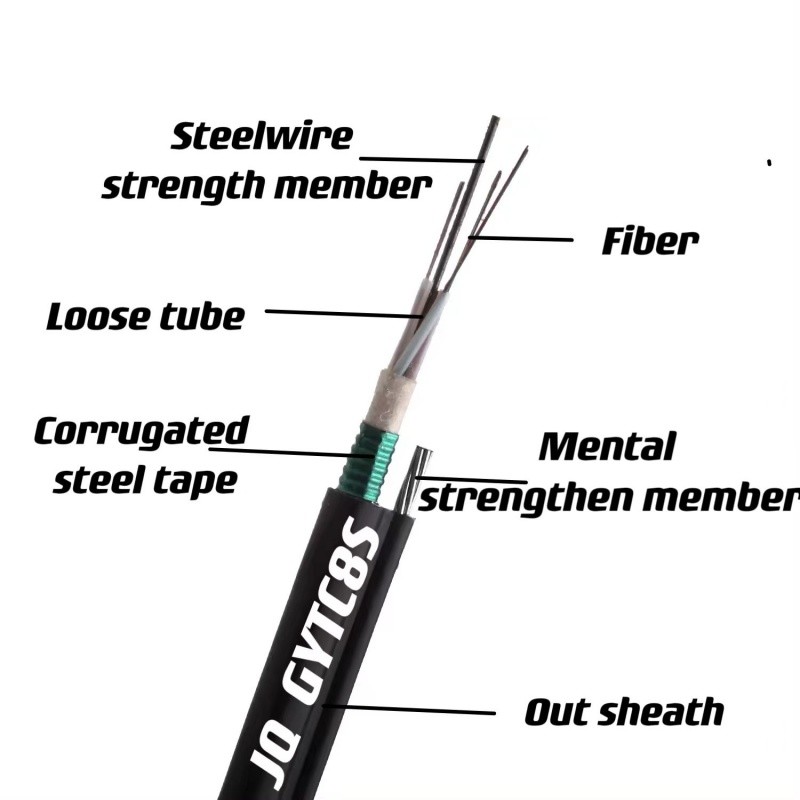

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethelene(PE) sheath to be figure 8 structure.

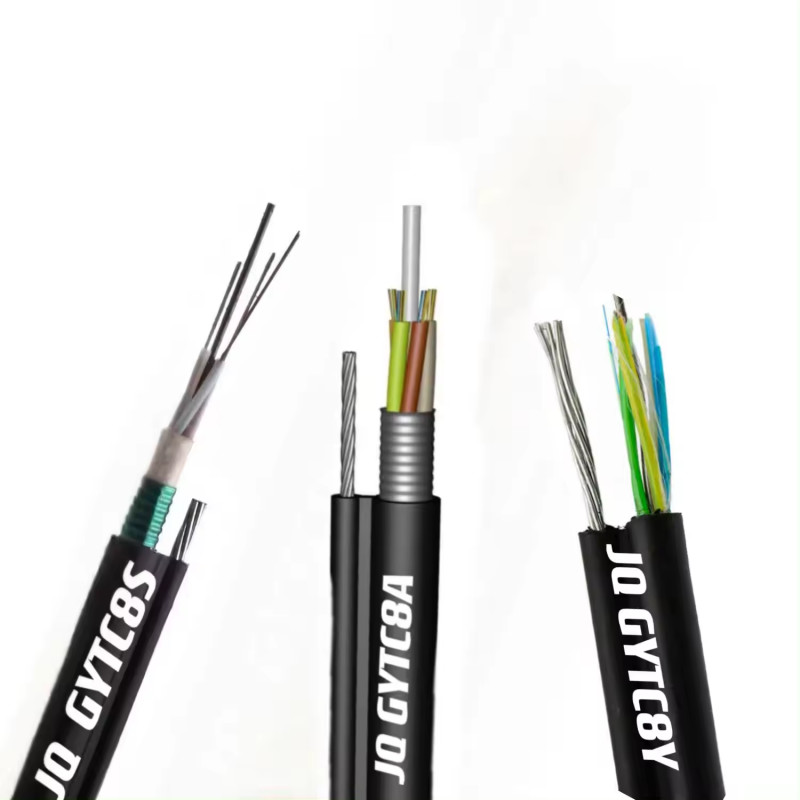

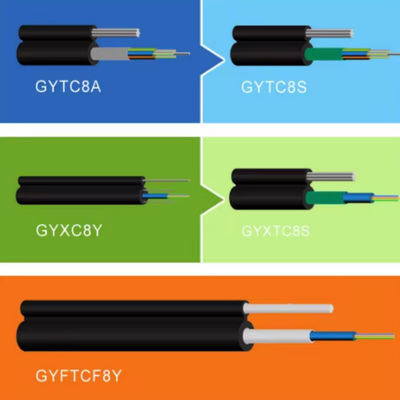

Figure 8 cable DCTC8Y, DCTC8S are also available om request. This type of cable is specifically applied for self-supporting aerial installation.

JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 0

JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 1

Characteristics:
High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation.Good mechanial and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Steel wire used as the central strength member.
Loose tube filling compound.
100% cable core filling.
APL moisture barrier.

Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

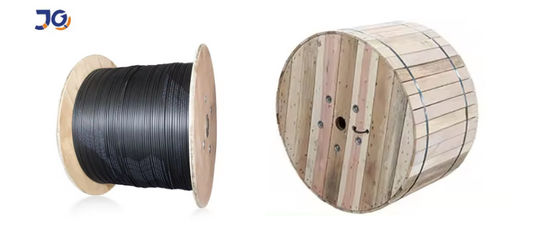

Packing:

JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 2

With a wide range of product packaging, we can meet any of your needs so that your products arrive at their destination intact.

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance".

We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 3JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 4

Certification:

JQ Factory Outdoor Self-Supporting Figure 8 Cable Type GYTC8S GYTC8A 60 Core 72 Core Fiber Optic Cable 1km Price 5

FAQ:

1.Can I have a sample order of this product?
Yes,we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. What about the lead time?
Sample needs 10 days.Mass quantity need 1 week for production.

3.Do you have any MOQ limit for sample order?
Low MOQ,1 kilometer for sample checking is available.

4.How do you ship goods/how long does it take?
We usually ship by express. DHL,UPS,FedEx or TNT.It usually takes 3~5 days. Airline and Sea shipment also are optional.

5.How to proceed an order for the product?
Firstly,please let us know your requirements or application for.
Secondly, we quote according to your requirements or our suggestion. Thirdly,customers confirms the samples,place deposit for formal order.
At last,we arrange the production.

6.Do you offer guarantee for the products?
Yes,we offer 1 year warranty to our formal products.
