8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Diameter: 9/125μm
Outer Diameter: 9.0mm-16.0mm
Water Blocking System: Filling Compound
Cladding Diameter: 125.0±0.1
Bending Radius: 20D
Jacket: UV PE
Fiber Cores: 4-144cores
Bend Radius: 20x Cable Diameter
Highlight:

GYTC8Y/GYTC8S Strand Fiber Optic Cable

,

24 Core Strand Fiber Optic Cable

,

Self Supporting Strand Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ
Certification: ISO9001
Model Number: GYTC8S/GYXTC8S
Payment & Shipping Terms
Product Description

Aerial Armored Self-supported Figure 8 Fiber Optic Cable 8 12 24 core GYTC8Y/GYTC8S/GYXTC8A/GYXTC8Y



Applications

Overhead laying

The cable is applicable for long-distance and interoffice communication
8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 0

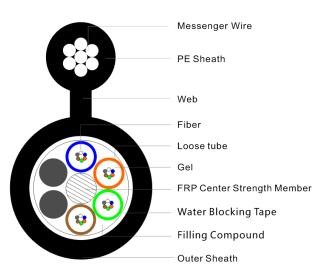

Cable Structure
8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 1
8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 2
8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 3



8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 4

8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 5

Fiber Parameter

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22


Cable Performance

item
Specification
Model Number
GYFTC8Y
Type
Outdoor Fiber Optic Cable
Place of Origin
China

Guangdong
Brand Name
Jiqian/OEM
Strength member
7*1.0MM stranded steel wires
Product name
Outdoor Figure 8 Fiber Optic Cable
Color
Black
JACKET
PE
Structure
Figure 8 shape
Packing
Wooden drum
Dimensions
9.0*14.5mm
Fiber Type
G652D
Operating temperature
-40~+75
Fiber count
4-144 Count
MOQ
1 Kilometers





Packing & Delivery

8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 6

8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 7



Test report and certification enclosed on each drum

OEM Services

Outside package customize

Logo printing for Free
8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 88 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable 9
