GYTC8S/GYXTC8S Figure-8 Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : 1km
Delivery Time : 3-5 days Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001/FCC/ISO9001/CE Model Number: GYTC8A/GYXTC8S

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Numer: GYTC8S/GYXTC8S OEM: Available
Sheath Material: PE Number Of Fiber: 2-288
Certification: ISO 9001 Manufacturer: Yes
Strength Member: Stranded Steel Wire(7*1.0)
Highlight:

Figure 8 fiber optic cable

,

GYXTC8S Figure 8 Fiber Optic Cable

Product Description

Figure-8 fiber optic cables are self-supporting aerial cables designed for easy and economical one-step installation. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber.While the flexible, craft-friendly buffer tubes are easy to route in closures, the SZ-stranded loose tube design isolates optical fibers from installation and environmental rigors and facilitates mid-span access.The figure-8 cable design allows easy, one-step installation, using standard hardware and installation methods. These cables have a medium density polyethylene jacket that is rugged, durable and easy to strip.

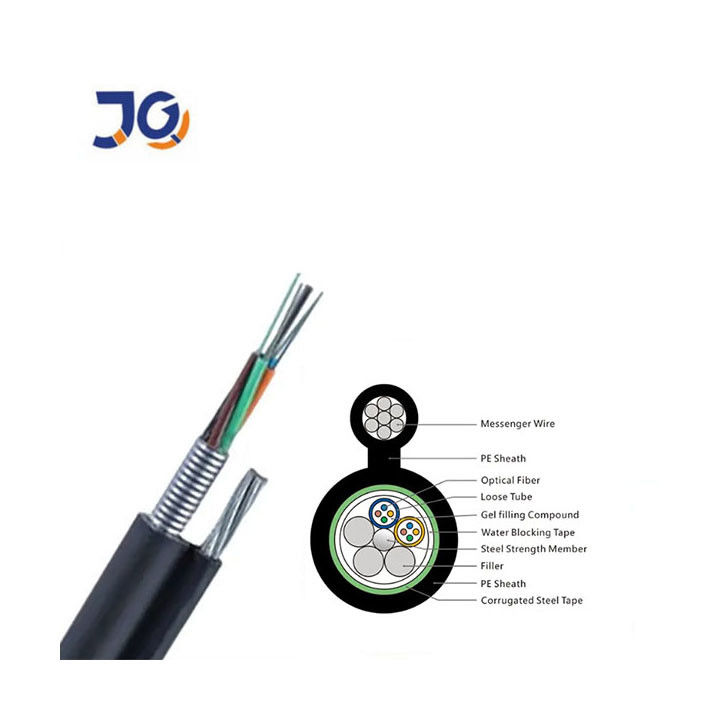

GYTC8S/GYXTC8S  Figure-8 Fiber Optic Cable 0

Features
• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

• Use the following measures to ensure the waterproof performance of the optical cable:

- Single steel wire center reinforcement core

- Loose tube filled with special waterproof compound

- Complete cable core filling

- Plastic coated aluminum tape (APL) moisture barrier



Specification:

Characteristic: Figure 8 Self-Supporting

Cable Type: Aerial Outdoor Fiber Optic Cable

Fiber Type: G652D
Jacket Material: Polyethylene (PE)
Total Fiber Count: 4-288 Cores
Loose tube:PBT

Application: Aerial

Armor: Corrugated Steel Armoring



Technical parameter



Performance Long-term Short-term
Max.Tension(N) 3500 7000
Max.Crushing 300 1000
Min. Bend Radius(Dynamic)
20D(Dynamic) 10D(static)
Storage and operating temperature -40℃ to +70℃



Optical Characteristics



Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100
Application: overhead

Certification:

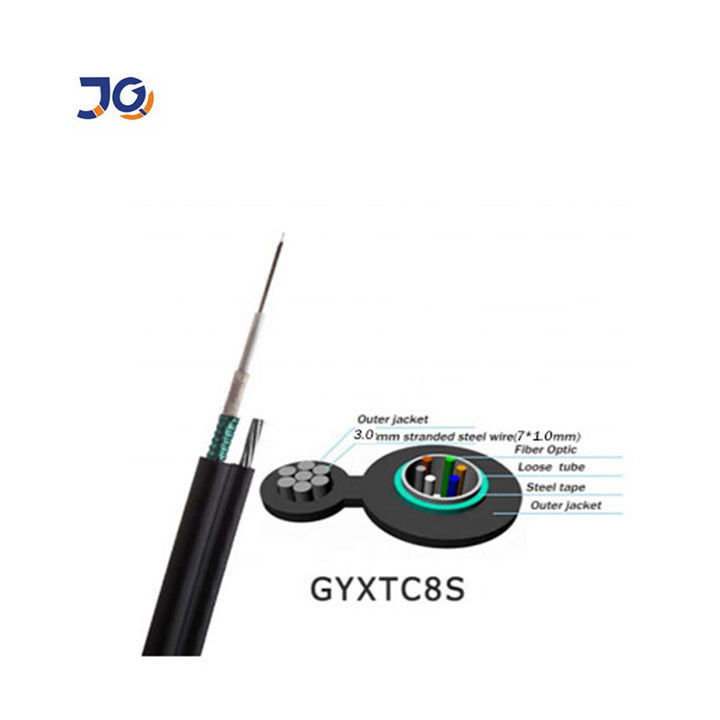

GYTC8S/GYXTC8S  Figure-8 Fiber Optic Cable 1

FAQ:



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

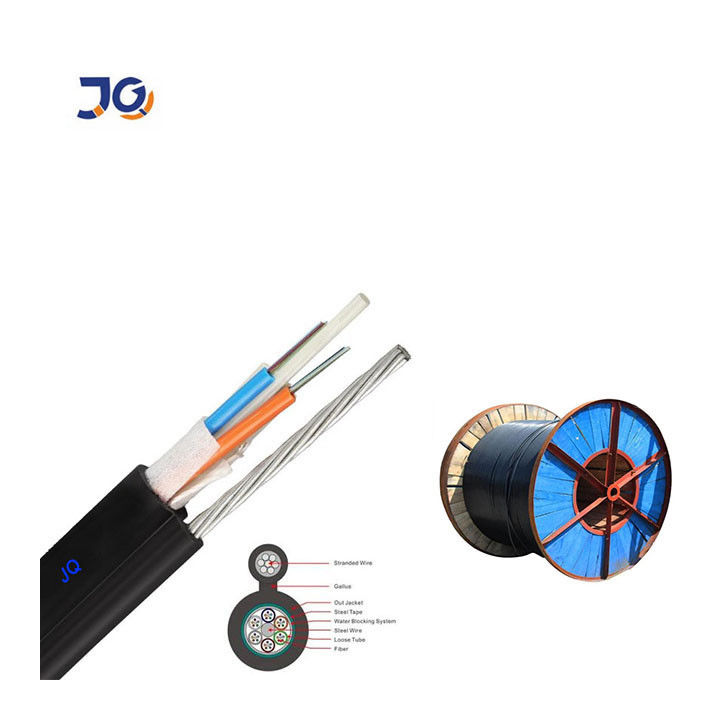

GYTC8S/GYXTC8S  Figure-8 Fiber Optic Cable 2
