self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core

Minimum Order Quantity : 2km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC Model Number: GYTC8S

Detail Information

Fiber Type: Singlemode /multimode Fiber Count: 2-288 Cores
Length: 5 Km Or Customized Model Number: GYTC8S
Color: Black Messenger Wire: 1.0*7 Steel Stranded Wire
Structure: Figure 8 Cable Armor: Steel Tape
Operating Temperature: -40 ~ +60 C Application: Outdoor Aerial Application
OEM: Acceptable

Product Description

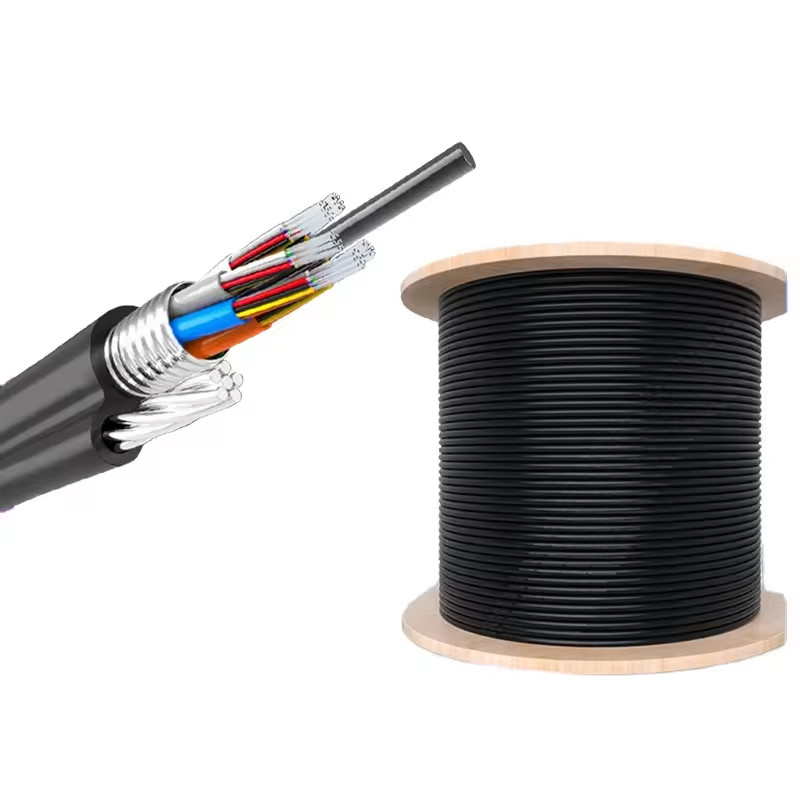

 Self-supporting Figure 8 Fiber Optic Cable GYTC8S



Product description:

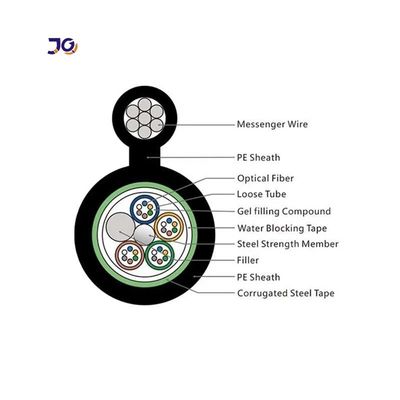

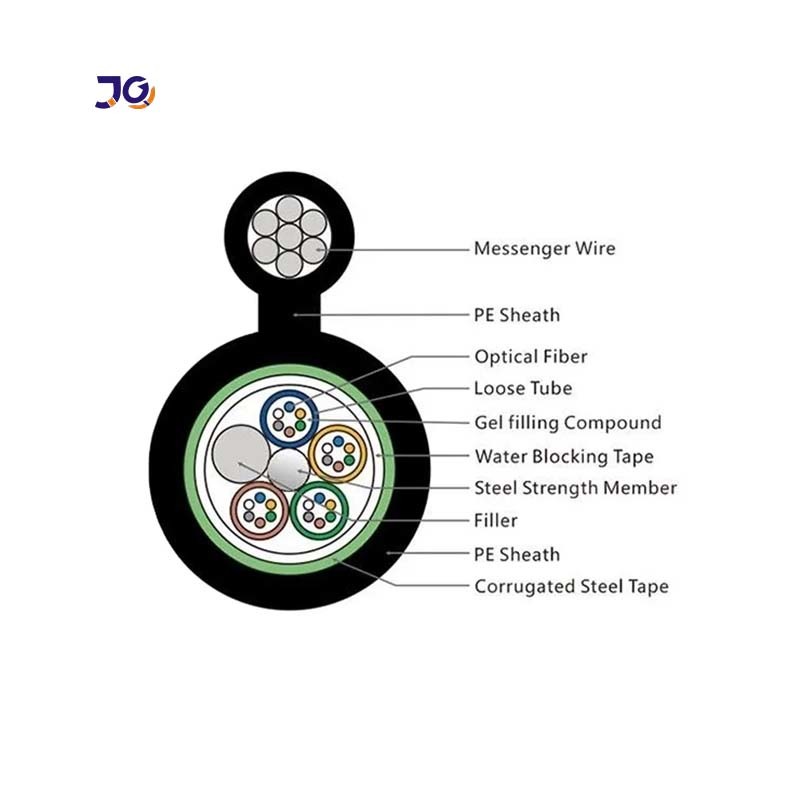

The structure of the GYTC8S optical cable is to put a single-mode or multi-mode optical fibre belt into a loose sleeve made of high-modulus polyester material, and the sleeve is filled with waterproof compounds. The centre of the cable core is a metal reinforcement core. The loose sleeve (and the filling rope) is twisted around the centre reinforcement core to form a compact round cable core. The gap in the cable core is filled with a water-blocking filler. After the plastic-coated steel belt (PSP) is wrapped vertically, it is integrated with the steel wire stranded into an 8-shaped polyethylene sheath into a cable. This product is used for self-bearing overhead laying.



self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core 0





Features



1.  Single or seven stainless steel or electroplated copper self-supporting overhead suspension cable structure.

2.  Oil filling, multi-bundle tube loose sleeve structure, centre reinforcement core reinforcement, steel belt armour.

3  .It has good environmental and mechanical properties. *. Sheath material: PE, LSZH application:


---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber Model G.652D
Design(Strength Member+Tube&Filler) 1+5
CentralStrengthMember Material Steel Wire
Diameter(+0.05)mm 1.5
LooseTube Material PBT
Diameter(+0.06)mm 2
Thickness(+0.03)mm 0.32
TheMax.CoreNO./Tube 12
Filler Rope Material HDPE
Color White
Diameter(+0.06)mm 2.1
Strand Strength Member Material Galvanized Steel
Type φ0.9x3
Armor layer Material Steel Tape
OuterSheath① Material MDPE
Thickness(+0.03)mm 1.
OuterSheath① Material MDPE
Thickness(40.03)mm 1.8
CableDiameter(土0.2)mm 9.5*17.8(nominal)
CableWeight(+10)kg/km 160(nominal)
Min.installation/N 1500
Attenuation 1310nm 0.35dB/KM
1550nm 0.21dB/KM
Min.bendingradius Without Tension 10.0*Cableφ
Under Maximum Tension 20.0xCableφ

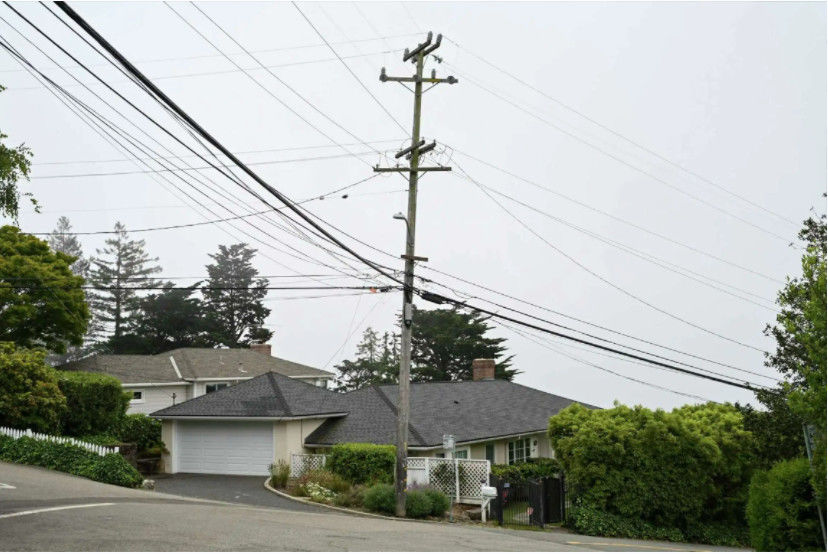

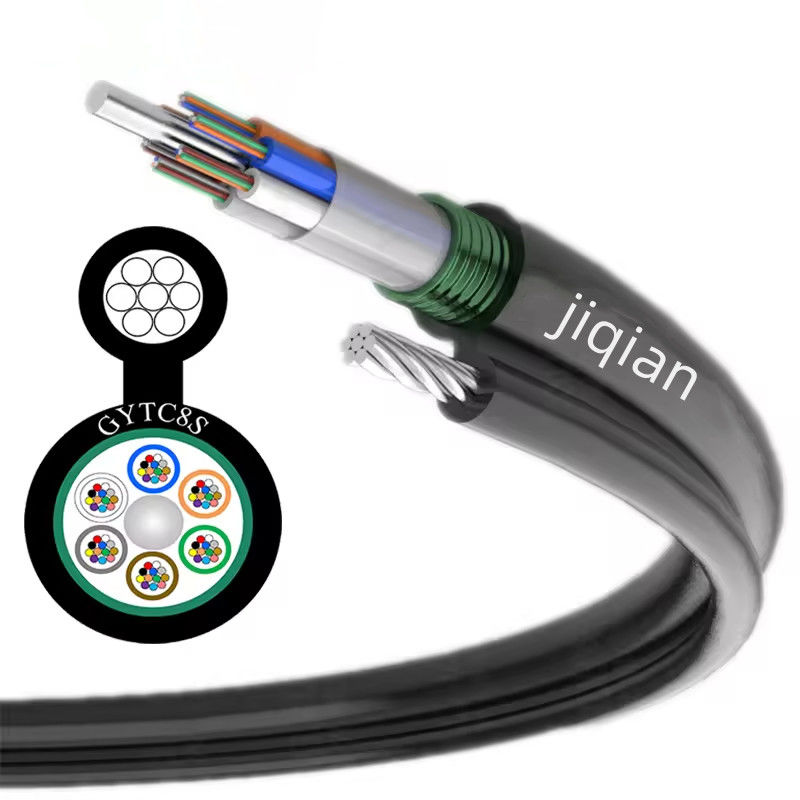

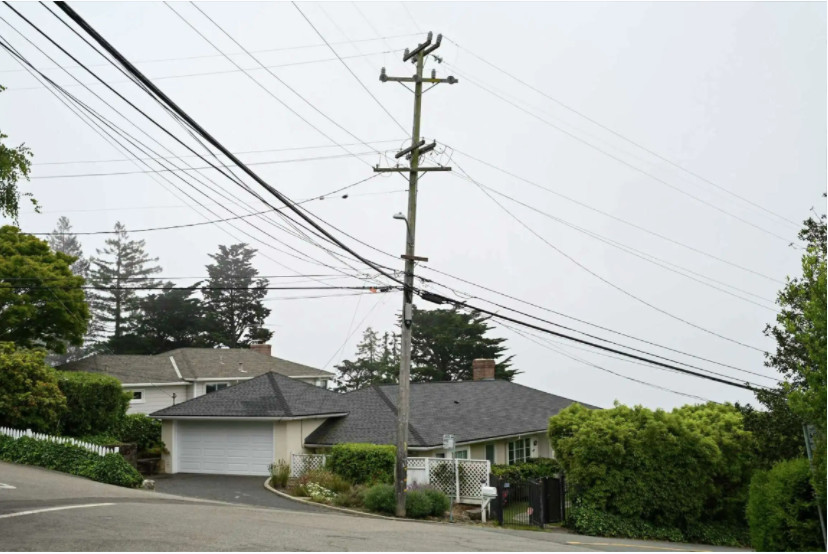

Picture Show



self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core 1





self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core 2





Packing



• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available

self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core 3





self supporting figure 8 fiber optic cable 12 cores 24 core 48 cores 96 core 4





FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 15 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days







6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
