GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP

5 km
MOQ
GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D/G657A1
Fiber Count: 2-144 Cores
Length: 2 Km Or Customized
Model Number: GYTC8S/GYFTC8S/GYXTC8A
Color: Black
Messenger Wire: 1.0*7 Steel Stranded Wire
Structure: Figure 8 Cable
Type: APL Tape
Operating Temperature: -40 ~ +60 C
Application: Outdoor Aerial Application
Product Name: Figure 8 Self Support Fiber Optical Cable
Fiber Grade: A
Armoured: Aluminum Tape
Model Numer: GYTC8S
Factory: Yes
Bending Radius: 20D-30D
Feather: Strong
Jacket: PE
Outsheath: PE / LSZH / OFNP
Outer Sheath Material: LSZH PE HDPE
Standards: RoHS, UL, ETL, IEC
Service: OEM&ODM
Filler: Tube Filling Compound(Gel)
Aromored: Steel Tape
Self Suporting: Stranded Steel Wire
Strength Member: Aramid Yarn
Highlight:

Steel Messenger Armored Fiber Optic Cable

,

GYFTC8S Armored Fiber Optic Cable

,

Self Supporting Armored Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTC8A
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300km per days
Product Description



self-supporting FRP strength armoured GYFTC8S Figure 8 Fiber Optic Cable



description of Figure 8 fiber cable

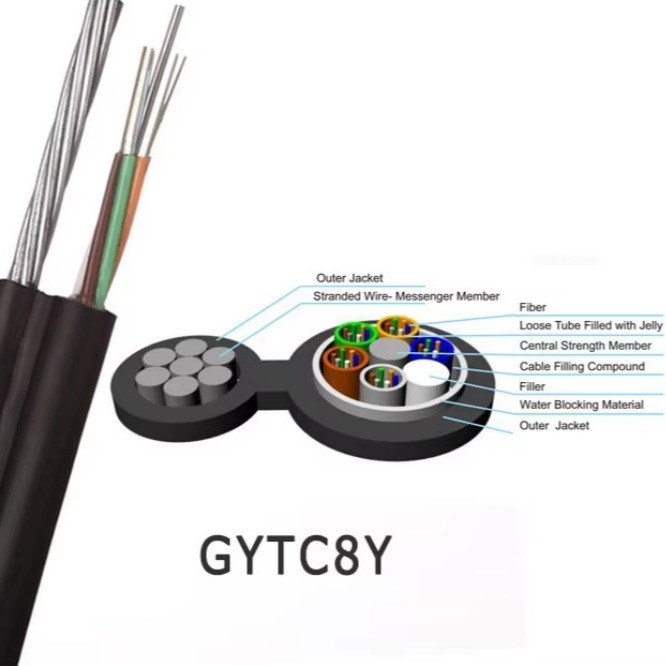

The Figure 8 fiber optic cable, including models such as GYFTC8S, GYTC8S, GYXTC8S, and GYXTC8Y, is a self-supporting outdoor cable widely used in aerial installations. It offers strong resistance to moisture and external pressure. The cable's metallic strength member is composed of stranded steel wires, while the support portion is encased in a polyethylene (PE) jacket, forming a characteristic figure-8 shape.







Features





  1. The stranded wire design provides excellent tensile strength, supporting self-bearing installation and lowering deployment costs.

  2. Exhibits strong durability under mechanical stress and temperature fluctuations.

  3. Utilizes high-strength loose tubes with resistance to hydrolysis for long-term reliability.

  4. Special gel within the tubes offers vital protection for optical fibers.

  5. Multiple design strategies are applied to ensure water-blocking performance:

    • Central strength member made of steel wire or FRP

    • Water-resistant filling compound inside loose tubes

    • Full core filling throughout the cable

    • PSP layer added to enhance moisture resistance

Optical Characteristics





Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber Model G.652D
Design(Strength Member+Tube&Filler) 1+5
CentralStrengthMember Material Steel Wire
Diameter(+0.05)mm 1.5
LooseTube Material PBT
Diameter(+0.06)mm 2.0
Thickness(+0.03)mm 0.32
TheMax.CoreNO./Tube 12
Filler Rope Material PE
Color White
Diameter(+0.06)mm 2.1
Strand Strength Member Material stranded steel wire
Type φ1.0mm x7
Armor layer Material Steel Tape
OuterSheath① Material PE
Thickness(+0.03)mm 1.
OuterSheath① Material MDPE
Thickness(40.03)mm 1.8
CableDiameter(土0.2)mm 9.0*16.0(nominal)
CableWeight(+10)kg/km 160(nominal)
Tensile /N (short term) 5000
Tensile /N (long term) 1500
Crush/N ( short term) 1000
Crush /N (short term) 300
Attenuation 1310nm 0.35dB/KM
1550nm 0.22dB/KM
Min.bendingradius Without Tension 10.0*Cableφ
Under Maximum Tension 20.0xCableφ





Picture Show

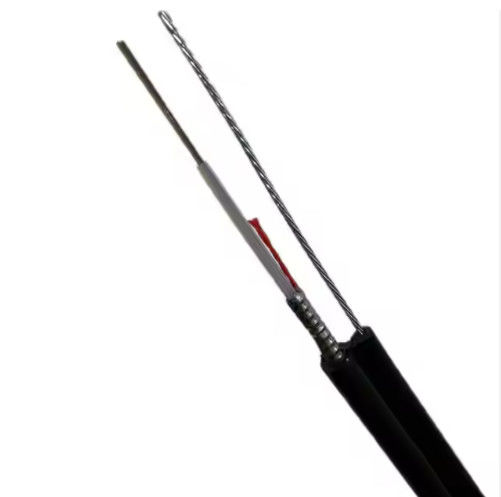

GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP 0

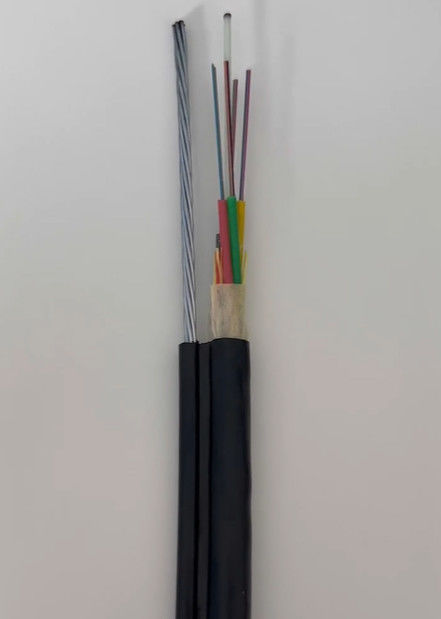

GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP 1



Packing

• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available







FAQ

1. Are you a direct manufacturer?
Yes, we are a genuine manufacturer with over 10 years of industry experience.

2. Do you support small quantity orders?
Absolutely. We welcome small orders, especially for new projects, as we understand every business starts with a first step.

3. How long is your product warranty?
We offer a 25-year warranty for our fiber optic cables.

4. What is your typical lead time?
Generally, orders are processed and shipped within 3 to 5 working days.

5. What is your yearly production capacity?

  • Outdoor/Indoor Fiber Optic Cable: 6,000,000 kilometers annually

  • FTTH/FTTX/FTTA Cable: 6,000,000 kilometers per year

  • Patch Cords and Pigtails: 12,400,000 pieces annually

6. Do you offer custom products and branding?
Yes, we provide OEM and ODM services. Just send us your design or requirements, and we’ll take care of the rest.
