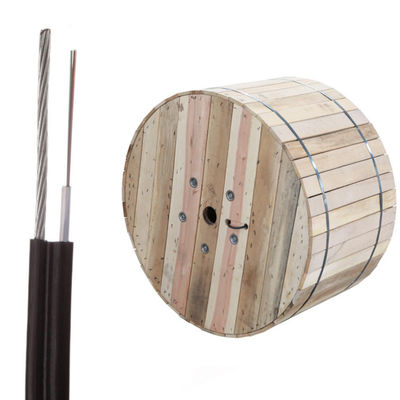

GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable 24 48 Core Outdoor Communication

1 Kilometer
MOQ
GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable 24 48 Core Outdoor Communication
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTC8S- 24 48 Core
Fiber Type: G652D Single Mode Or As Your Request
Jacket: PE,MDPE,LSZH,PVC,HDPE
Central Strength Member: Steel Wire
Package: Wooden Drum/Customized
Length: 3000M/drum, Or As Required
Application: Telecom/network
Fiber Brand: YOFC/Fiberhome/Corning/Fujikura
Highlight:

Figure 8 aerial fiber optic cable

,

Self-supporting outdoor fiber cable

,

24 core GYTC8S fiber optic
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYTC8S/GYFTC8S
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

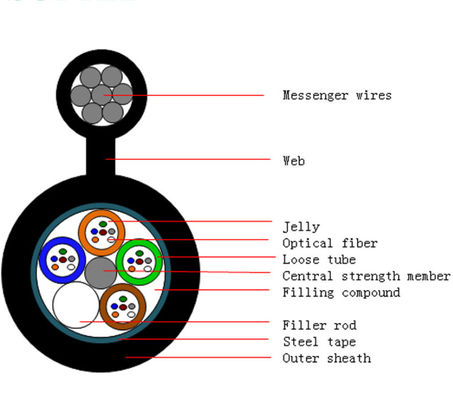

GYTC8S Outdoor Figure 8 Aerial Fiber Optic Cable – Armored Self-Supporting Solution for Long-Distance Networks

Key Features

  • Figure-8 self-supporting design for aerial installation

  • Corrugated steel tape armor for crush and impact resistance

  • Integrated messenger wire for high tensile strength

  • Central steel strength member for structural stability

  • Water-blocking materials for reliable fiber protection

  • PE outer sheath for weather resistance

  • Supports 1–144 fiber capacity

Applications

  • Outdoor aerial communication lines

  • Long-distance transmission networks

  • LAN and access networks

  • CATV systems

  • Telecom backbone networks

  • Computer network connections

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable 24 48 Core Outdoor Communication 0

GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable 24 48 Core Outdoor Communication 1

Certification:

GYTC8S Figure 8 Self Supporting Aerial Fiber Optic Cable 24 48 Core Outdoor Communication 2

FAQ



Who are we?
A Guangdong-based fiber optic cable manufacturer founded in 2017, serving Africa, South America, Europe, the Middle East, and Asia.



How do we ensure quality?
Pre-production samples and strict final inspection before shipment.



What do we supply?
Fiber optic cables, FTTH drop cables, and indoor & outdoor communication cables.



What services are available?
Trade terms: FOB, EXW
Payment: T/T, L/C, D/P, D/A, PayPal, Western Union
Currencies: USD, CNY



What is the MOQ?
1 km.



Are samples available?
Yes — free samples (shipping cost applies).



Do you support OEM/ODM?
Yes, customization is available.



What is the delivery time?
Typically 3–7 days after order confirmation.
